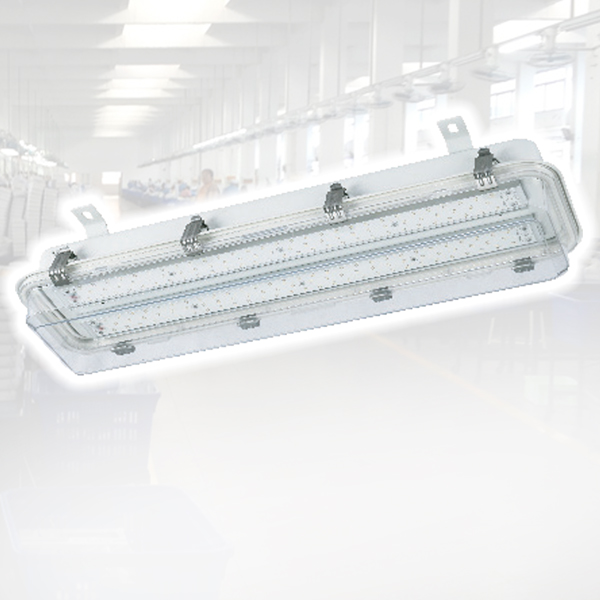

The XPVT series LED explosion proof light is a vapor tight designed for use in hazardous locations where flammable gases, vapors,or liquids may be present during normal facility operations. The combination of the style and design of new LED technology with the ruggedness and durability of a hazardous location fixture makes it ideal for retrofit of existing HPS/MH, offering higher efficacy for energy savings, lower maintenance costs and shorter payback.
CONSTRUCTION: SUS304 stainless steel body. Polycarbonate lens is standard. All hardware is stainless steel.
BEAM ANGLE: All units are 120 degrees.
ELECTRICAL SYSTEM: 120-277Vac, 50/60Hz, .9 Power Factor. Surge Protection 4kV. 50,000-hour LED lifespan. 80 CRI.
LISTINGS: UL844 Hazardous Locations Class l, Division 2, Groups A, B, C, D Class ll, Division 1, Groups E, F, G Class ll, Division 2, Groups F, G Class III Class I, Zone 2 Group IIC UL 1598 Luminaires UL 1598A Marine Outside Type UL 8750 LED Safety UL924 Emergency Lighting DLC 5.1 ETL ABS, IP66 IK10, 3G Vibration, 1200 Hours Salt spray, ATEX Marking (Certificate Number: CSANe 23ATEX1213X): II 3GD, Ex db ec IIC T6/T5 GC, Ex tC IIIC, T80°C/T95°C DC. IP66/IK10/3G vibration/1200 hours salt spray.
OPERATING TEMPERATURES: -40°C to +60°C for T6/T80°C.
MOUNTING: Ceiling, rope, or pole mounted.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
