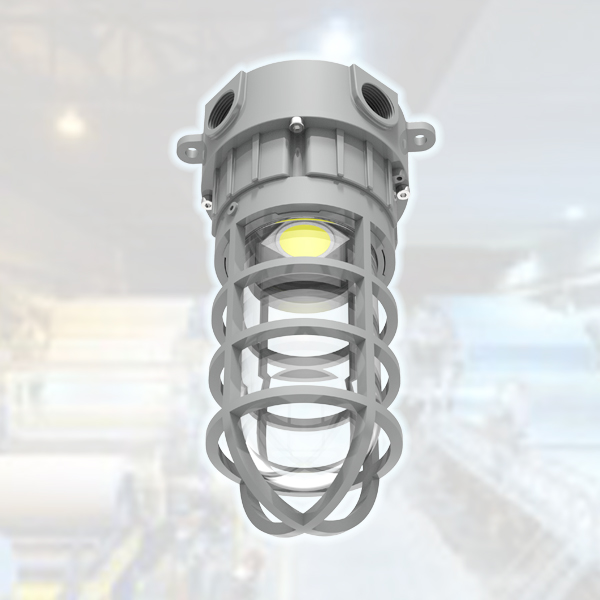

The XP02 Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected. Compact structure and small size, ideal for use in various places where spot light is required, such as mine, brewery, aisle, etc.
CONSTRUCTION: Copper-free aluminum housing for great corrosion resistance and cooling performance. Impact resistance is at IK08 (with glass cover). Tempered glass is standard.
CABLE ENTRIES: There are four cable entries are at side wall of luminaire housing which are used to install M25, M20, NPT 1/2″ or NPT 3/4″ certified cable glands or stopping plugs with suitable IP code.
ELECTRICAL SYSTEM: High luminous efficacy – Up to 140 lumens per watt, and 0-10V dimming is standard. LED lumen Maintenance: L70> 150,000 Operation Hours @ 55°C. CRI 70, and 5000K CCT. Power factor >0.65.0. Input voltage: 100-277/200-480VAC LISTINGS: Approved to CSA, ETL AND UL standards. UL 844 Hazardous Locations Class I Division 2, Group A, B, C, D, UL 1598 Wet Locations, UL 1598A Marine Outside Type. UL 8750 LED Safety, UL 924 Emergency Lighting, DLC, ABS, IP66, IK08.
OPERATING TEMPERATURES: T6/T80°C: -40°C to +25°C (-40°F to +77°F) T5/T95°C: -40°C to +40°C (-40°F to +104°F) T4/T130°C: -40°C to +60°C (-40°F to +140°F) MOUNTING: Ceiling, Pole, or Wall.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
