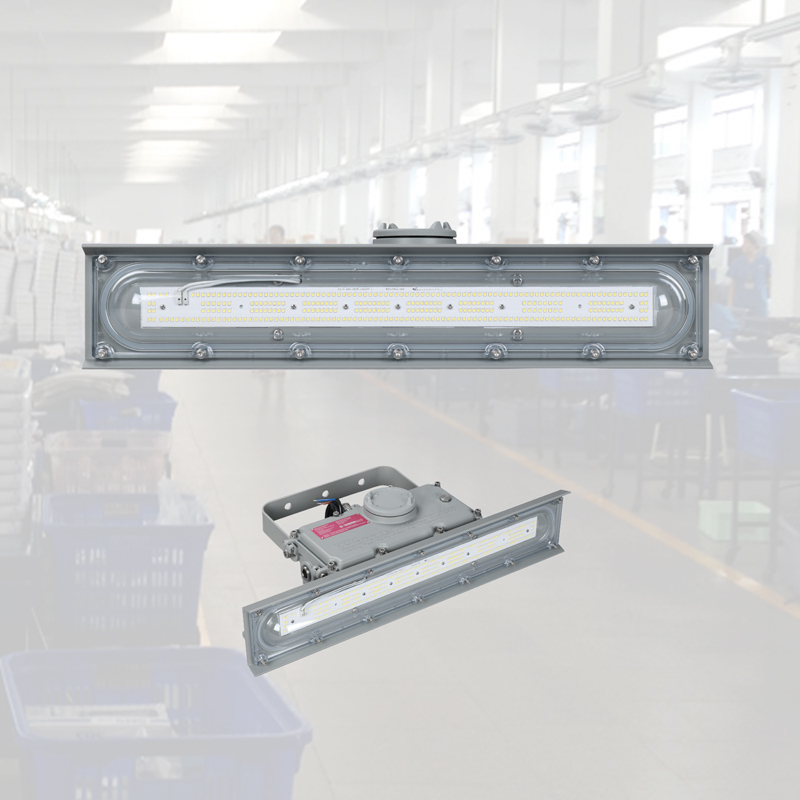

The XPH Series LED luminaire is the ideal choice for marine and hazardous applications where a linear design is required. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or where high ambient can be expected.
CONSTRUCTION: Copper-free aluminum housing for great corrosion resistance and cooling performance. Impact resistance is at IK08 (with glass cover) and IK10 (with wireguard) certified. Tempered glass is standard.
BEAM ANGLE: 120 degrees.
ELECTRICAL SYSTEM: High luminous efficacy – Up to 140 lumens per watt, and 0-10V dimming is standard. LED lumen Maintenance: L70> 150,000 Operation Hours @ 55°C. CRI 70, and 5000K CCT. Power factor >0.95. Input voltage: 100-277/200-480VAC, 12-36VDC LISTINGS: Approved to CSA, ETL AND UL standards. UL 844 Hazardous Locations Class I Division 2, Group A, B, C, D Class II Division 2, Group F, G Class III Class I, Zone 2, Group IIC Class II, Zone 21, Group IIIC, UL 1598, Wet Locations, UL 1598A, Marine Outside Type, UL 924 Emergency Lighting CSA C22.2#250.0:2021 Ed.5 CSA C22.2#137:2018 Ed.2 ETL (ATM for Report 105342415DAL-001), ABS, IP66 IK08 (glass cover) IK10 (with wire guard) 1000 hours salt spray
OPERATING TEMPERATURES: -40°C to 60°C (-40°F to 140°F)
MOUNTING: Can be mounted in a variety of ways.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
