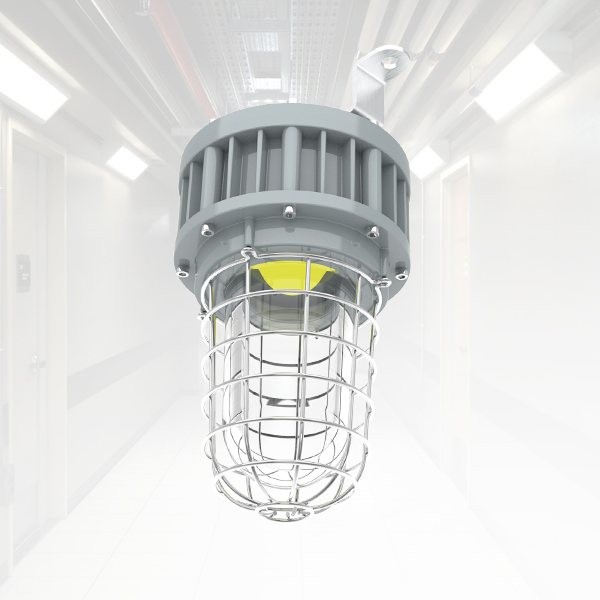

The XPG Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
CONSTRUCTION: Copper-free aluminum housing for great corrosion resistance and cooling performance. Impact resistance is at IK08 (with glass cover) and IK10 (with wireguard) certified. Tempered glass is standard.
BEAM ANGLE: All units are available in 40, 60, 90 and 120 degrees.
ELECTRICAL SYSTEM: High luminous efficacy – Up to 140 lumens per watt, and 0-10V dimming is standard. LED lumen Maintenance: L70> 150,000 Operation Hours @ 55°C. CRI 70, and 5000K CCT. Power factor >0.65.0. Input voltage: 100-277VAC.
LISTINGS: Approved to CSA, ETL AND UL standards. UL 844 Hazardous Locations Class I Division 1, Group C, D Class I Division 2, Group A, B, C, D Class II Division 1, Group E, F, G Class II Division 2, Group F, G Class III Class I, Zone 1, Group IIB Class II, Zone 21, Group IIIC UL 1598 Wet Locations ETL (ATM for Report 105342415DAL-001/003), ABS, plus IP66/IK08 (glass cover)/IK10 (with wire guard).
OPERATING TEMPERATURES: -40°C to 60°C (-40°F to 140°F)
MOUNTING: Can be mounted in a variety of ways.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
