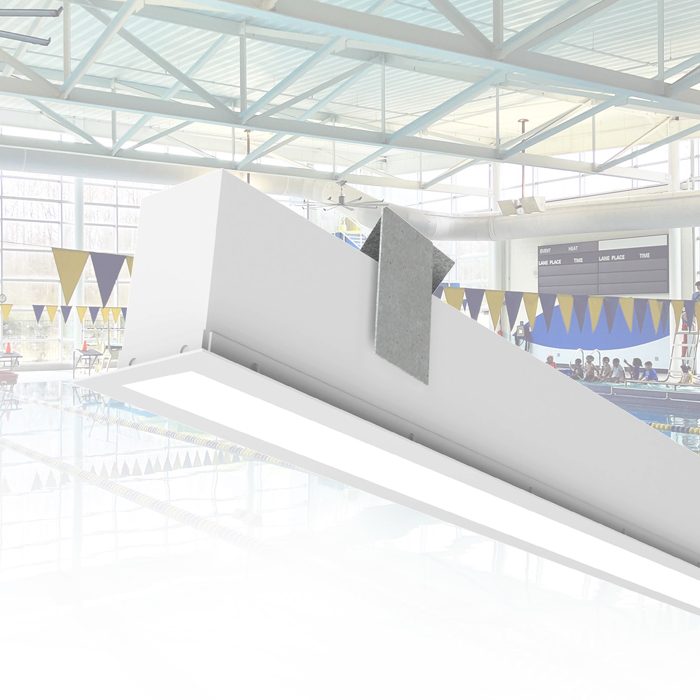

The X24NAT is a recessed LED linear fixture, design with quality craftsmanship. The XDL series provides clean lines, smooth continuous runs, and tight lens fitment. Available in continuous runs and custom angles and lengths. This is a great fixture for facilities like a natatorium or any environment where moisture vapor is higher than normal, and/or corrosive airborne materials such as chlorine or salt is present.
CONSTRUCTION: Constructed of a precision cut, marine grade aluminum extrusion with flat end caps. Internal joiner system. Available in any length with a 2′ minimum. Custom gaskets seal the fixture to make a wet location rated linear fixture. This housing is designed to be resistant to corrosion. Stainless steel housing materials also available as options.
MOUNTING: Lay-in grid fixtures fit 9/16 and 15/16 standard T-grids. Flanged mounting and flangeless trim mounting options include innovative top
mount bracket to support the fixture. Available as a continuous run fixture also.
LEDS: High Output LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least 100K life hours (L70 @ 50,000 hours). MAX ambient operating temp: 50°c (122°f), MIN ambient operating temp: -20°c (-4°f).
OPTICS: Snap-in satin acrylic lens fully diffuses the appearance of the LEDs and provides excellent light transmission.
DRIVER: 0-10V dimming driver included standard. Several driver options available to accommodate dimming.
NATATORIUM OPTION: Includes all the standard options, plus stainless-steel fasteners and a multi-step degrease and phosphate cleaning process that includes deoxidizing and etching. This is followed by an a super epoxy finish with a very high chemical resistance. This finish is specifically designed for these environments.
FINISH: Matte white finish standard. Custom finish options are available in various RAL colors.
OPTIONS: Various options are available. If additional or custom options are needed, consult factory.
LISTINGS: BAA Compliant. Designed and manufactured in the USA. ETL listed.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
