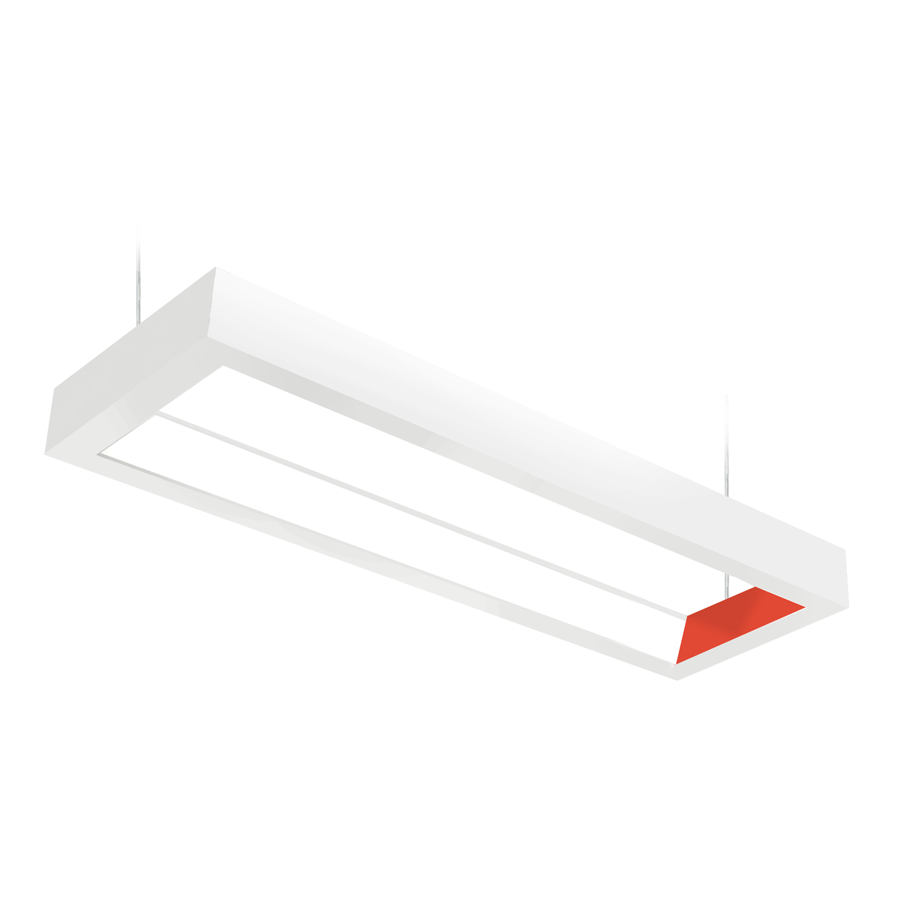

The LDLOC is an architecturally pleasing linear pendant fixture with an open center. This fixture provide semi-direct (25/75
ratio) light distribution with an extra wide direct lighting configuration and a low peak indirect luminescence. This unique
design allows for wide spacing between fixtures and a maximization of lighting power. Our LDLOC provides clean lines and a
tight lens fitment for an elegant and professional appearance. A wide range of options allow for easy customization. All
components are field serviceable if needed.
CONSTRUCTION: Constructed of 18 gauge U.S. sourced cold rolled steel, or a precision cut marine grade aluminum with flat end caps and
clean seams. Cross section is standard as a 2.1” x 8” configuration. Internal reflector has a high reflective ability and also serves as a
wireway cover.
FINISH: TGIC polyester powder coat – 5-stage pre-treatment, and powder-coated in house for a smooth and beautiful finish. Reflectance:
92%. Custom finish options are available in various RAL colors.
MOUNTING: Designed for pendant mounting. Low profile cable gripper system limits visibility from standard viewing angles. Pendant
system is also easily adjustable for accurate leveling. A suspension point is required at every row joint.
CUSTOM SHAPES: Innovative linear construction allows for custom shapes, such as Xs, Ts, and Ls. Corner connectors included with custom
shapes.
LEDS: High Output LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least
100K life hours (L70) and various lumen options deliver 150 to 1500 lumens per foot. 90 CRI is available as an option.
DRIVER: 0-10V dimming driver included standard. Driver options available for 1% dimming, Lutron EcoSystem, and DALI.
OPTICS: Snap-in satin acrylic lens fully diffuses the appearance of the LEDs and provides excellent light transmission. It is not necessary to
remove lens or any internal components for installation. A die-formed steel crossbar insert overlaps the diffuser end to eliminate light leaks
and can be custom finished (see CROSSBAR OPTIONS).
OPTIONS: A wide variety of options are available, including a Night Light, emergency battery, occupancy sensor, and more.
LISTINGS: BAA and BABA Compliant. Designed and manufactured in the USA. ETL listed.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty
