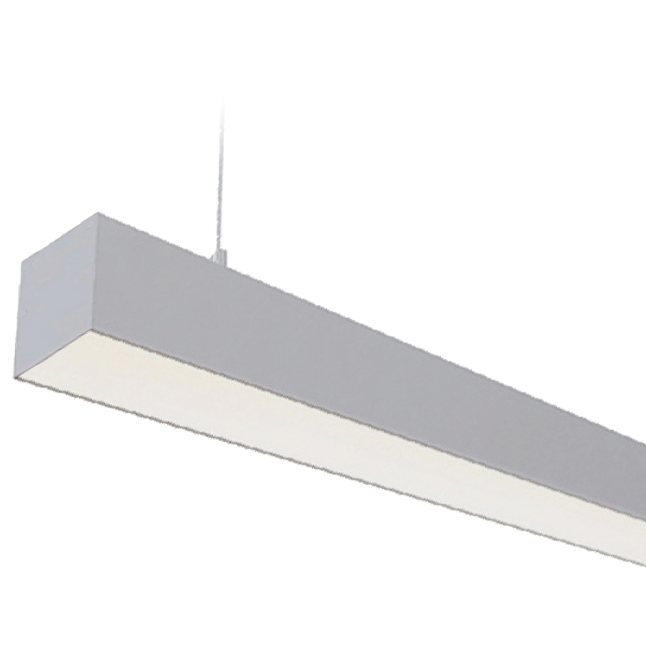

The LDL23DS is a 2”x3“ linear fixture designed for use in a wide variety of uses, including corridors, lobbies, office areas and more. This is a unique and compact fixture with a complete array of options. These can be installed individually or in continuous runs. Plus our snap-in lens does a great job of hiding internal components.

CONSTRUCTION: Die-formed and welded 22-gauge cold rolled steel with knockouts on each end. Housing is designed for direct lighting.

OPTICAL SYSTEM: High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82 with 90 CRI as an option. Standard snap-in satin lens provides a beautiful architectural design while maintaining optimal light output.

ELECTRICAL SYSTEM: Our LDL23DS achieves 80% LED lumen maintenance at 60,000 hours using long-life LEDs. Coupled with high-effciency drivers, this LUMINAIRE provides superior illumination and an extended service life. Electronic drivers are available for 120/277V applications, 0-10v dimming standard. Metal gear tray for internal LED driver. Complies with federal energy e ciency standards.

MOUNTING: This fixture is designed to be suspended mounted. Continuous run available.

LISTINGS: Independently tested to IESNA LM-79 and LM-80 specifications. ETL and cETL listed.

WARRANTY: 5-Year Full Replacement Warranty.
