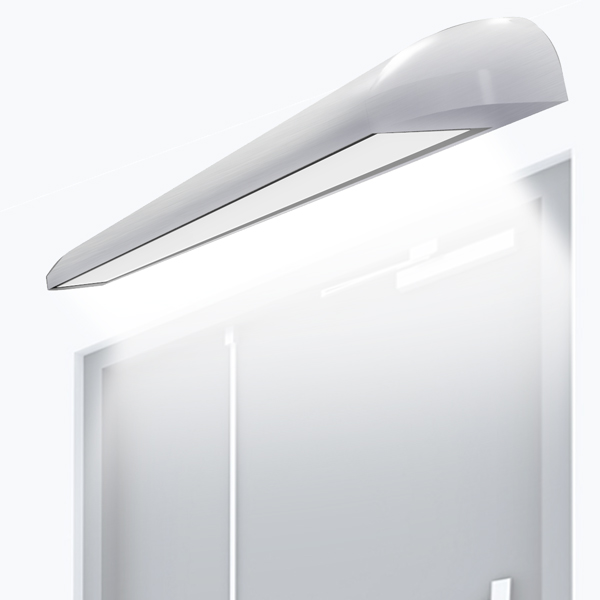

Introducing our new LDE… the newest and most intelligently designed Architectural Egress Luminaire on the market. This is the ultimate combination of lighting and water protection for use over doorways. This design features curved contours that are both modern and highly appealing. Available in multiple lengths to match a given door opening. The LDE is as versatile as it is attractive. Constructed from seam-welded extruded aluminum and aluminum cast end caps. Our quick-mount system facilitates installation and maintenance.

HOUSING: Constructed from seam-welded extruded 5052 marine-grade aluminum. Chemically primed and finished polyester powder coat. Door frame is an inset design and is also constructed from marine-grade aluminum.

WALL MOUNT: Constructed from marine grade heat treated extruded aluminum. Chemically primed and finished with a polyester powder coat. Designed for fast mounting to housing and secured with TORX® captive head stainless steel fasteners.

LENS FRAME: Constructed from marine grade heat treated extruded aluminum. Secured to frame with TORX® captive head stainless steel fasteners.

LENS: Extruded UV stabilized opal polycarbonate with integral prisms is standard. Maximum wall thickness 0.160″. Lens is secured to the housing with die cast aluminum door frame and stainless steel TORX® head screws.

END CAPS: Die-cast marine grade aluminum. Chemically primed and finished with a polyester powder coat.

DRIVERS: Dimming to 1%, 10% or programable lumen output driver options. A non-dimming driver is also available.

LED: CCT: 2700K, 3000K, 3500K, 4000K, or 5000K and 82 CRI wired in parallel-series, available as 90 CRI. L70 projected life of over 130,000 hours at 50ºC.

GASKETS: Closed cell self-adhesive neoprene gaskets are used to create a watertight seal between fixture and mounting surface. LISTINGS: ETL and cETL Listed. Wet location standard.

GOVERNMENT PROCUREMENT:  BAA – Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.

WARRANTY: Lifetime warranty; Advantage Environmental Lighting will repair or replace any fixture damaged due to vandalism for the lifetime of the installation. A10-year warranty on LED boards against operational defects is also included. This is the only warranty provided and no other statements in this specification sheet create any warranty. All other express and implied warranties are disclaimed. Complete warranty and terms located at https://aelnow.com/10-year-warranty/

https://aelnow.com/resources/LDE%20installation%20instructions.pdf
