The L4DID is budget-minded linear LED fixture that brings simplicity and flexibility to a wide range of environments. Available in a standard length of 48”, you can use the available X, L and T connectors to create shapes. User selectable CCT, lumen ranges, and the ability to adjust the upward and downward lumens makes the L4DID one of the most adjustable LED fixtures you can find.
HOUSING: Premium powder-coat, sheet metal stamping, white or black housing.
MOUNTING: With optional mounting kits you can utilize the L4DID as a recessed, surface/wall, cable, suspended or T-grid fixture.

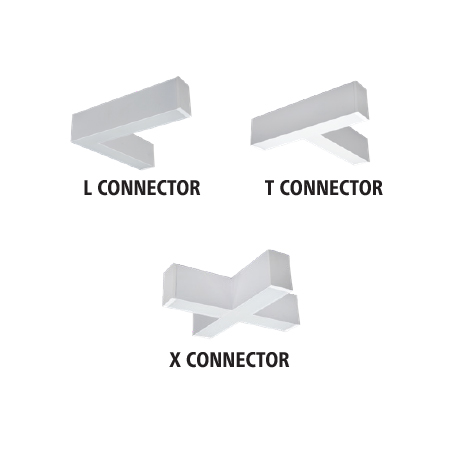

CUSTOM SHAPES: Innovative linear construction allows for custom shapes, such as Xs, Ts, and Ls.
CONNECTIVITY: Tooless linking of up to 10 fixture/ connector @120V.
LIGHTING FLEXIBILITY: User selectable 2700k (soft white), 3000k (warm white), (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures. User selectable light output settings provide 2,396 to 5,078 nominal lumens (see lumen chart on last page). Up/down light percentage is also user switchable.
ELECTRICAL: Long-life LEDs provide 175,000 hours of operation with at least 70% of initial lumen output (L70), and 53,000 hours with at least 90% of initial lumen output (L90). LED color maintenance < -0.0036 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation. Color rendering index > 80. 0-10VDC dimming drivers are standard.
OPTICS: PMMA Lens.
OPTIONS: Choose between white and black housings, and a wide variety of mounting kit options.
LISTINGS: cULus listed for damp locations. DLC standard listed. Complies with FCC part 15, class A.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty
