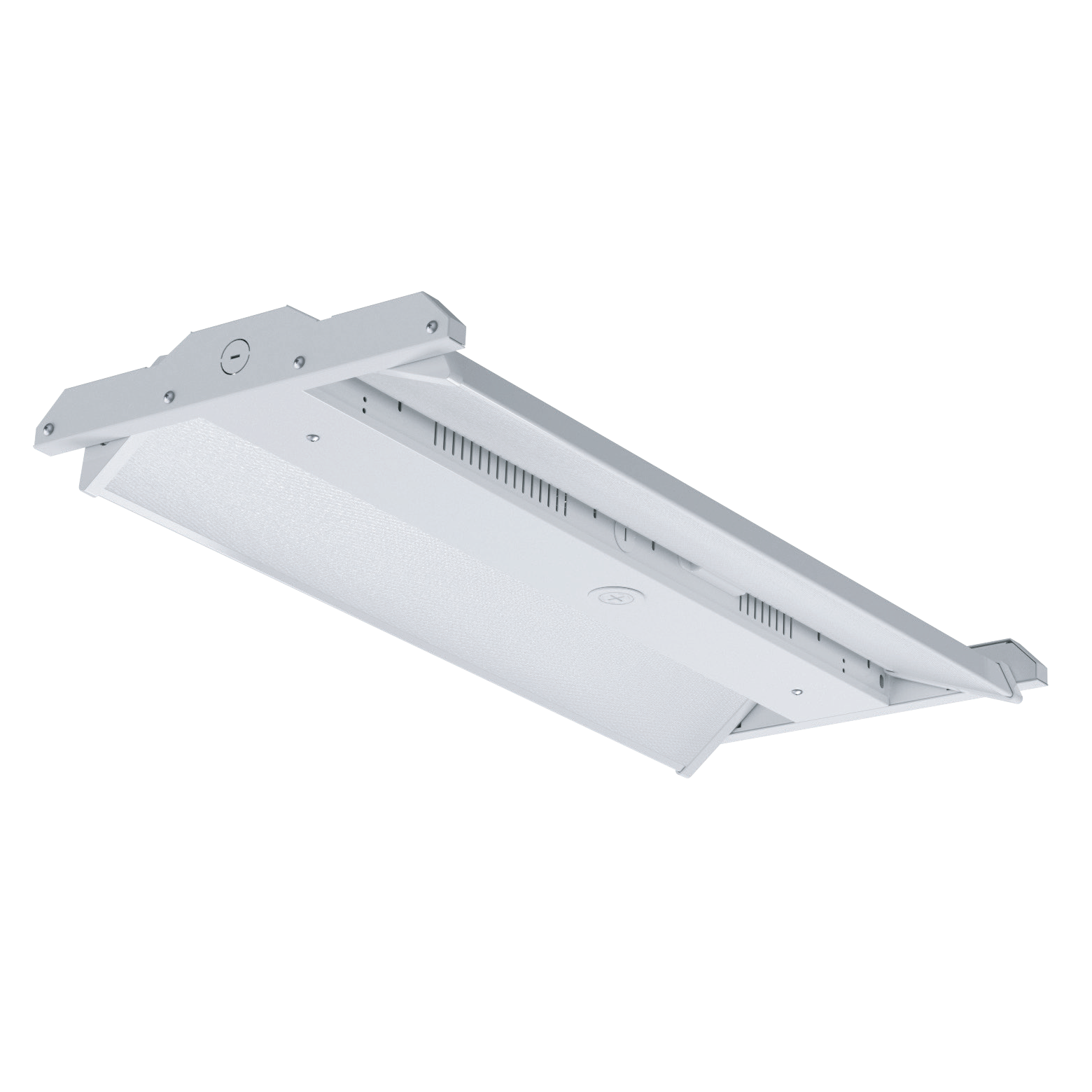

Premium powder-coat, die cast aluminum, white housing.
Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) . Universal 120-277V AC voltage (50-60Hz) is standard. Optics rotate up to 135°. Screw in sensor ready. (Sensor and remote control sold separately). Emergency driver option available. 347-480v achieved with step-down transformer. 0-10VDC dimming drivers are standard. Input transient surge protection = 6kV. PF > 0.9; THD < 20%. Polycarbonate lens. Field Selectable 4000k (neutral white) and 5000k (cool white) color temperatures*.
Tri-Lumens selectable delivers 9,000 to 30,000 nominal lumens（see lumen tables on page 3)**
Remote Control required to change factory sensor settings (see default settings on page 2). Long-life LEDs provide 148,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output L90). LED color maintenance < 0.0035 chromaticity shift (u’v’) over the initial 6,000 hours of operation. Color rendering index > 80%.
Chain-mount kit (includes v-hooks , 1-meter long chain) are standard. Optional surface mounting kit provides attachment to solid surfaces. Optional pendant mounting kit provides pendant attachment to 1/2” rigid conduit.
