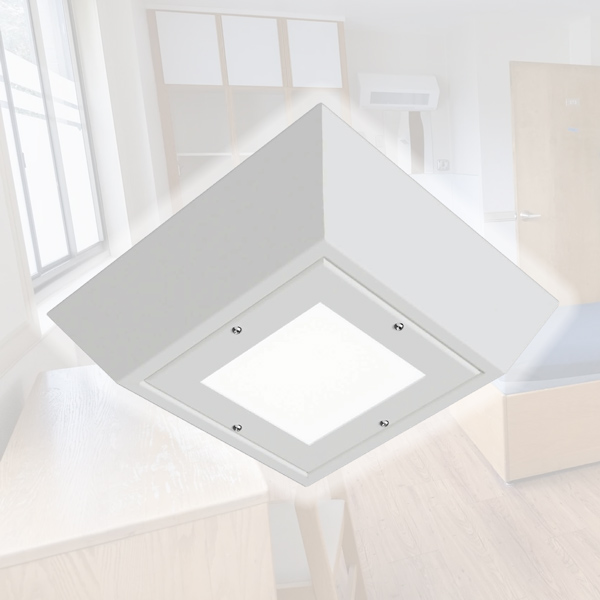

BHSWL – SURFACE MOUNT LED SECURE GRADE

The BHSWL LED combines maximum security construction with energy saving technology. The BHSWL is ideal for confinement/security applications that require an IP65 surface mount fixture. This surface mount luminaire is perfect for applications such as shower areas, inmate cells, behavioral health, secure corridors and general population areas. Ligature-resistant when mounted with pick-proof caulk.

The BHSWL LED combines maximum security construction with energy saving technology. The BHSWL is ideal for confinement/security applications that require an IP65 surface mount fixture. This surface mount luminaire is perfect for applications such as shower areas, inmate cells, behavioral health, secure corridors and general population areas. Ligature-resistant when mounted with pick-proof caulk.

FASTENERS: Stainless steel tamper-resistant center pin TORX screws standard. Allenhead screws with center pin optional.

ELECTRICAL SYSTEM: Electronic driver 120-277V, standard 0-10V dimming. Long-life LED system rated for >100K hours (L70 @ 50°C). Complies with federal energy efficiency standards. OPTICAL SYSTEM: Various lensing options available. Available with choice of inner and outer lenses, prismatic inner lens and clear outer lens (recommended).

LISTINGS: ETL and cETL listed for wet locations. IP65 rating. Manufactured in the USA,BAA Compliant.

FINISH: The BHSWL is TGIC polyester powder coated white using a 5-stage pretreatment. Consult factory for other finishes.

CONSTRUCTION: Housing and doorframe available in cold roll and stainless steel construction. Available in various materials and thickness. The corners are seam welded and smooth. Fixture is gasketed to provide an IP65 rating.

LED 2700K, 3000K, 3500K, 4000K and 5000K CCT LEDs, >82 CRI. 90 CRI available. Life is >100,000 hours at 70% lumen maintenance.

WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at: www.aelnow.com/warranty
