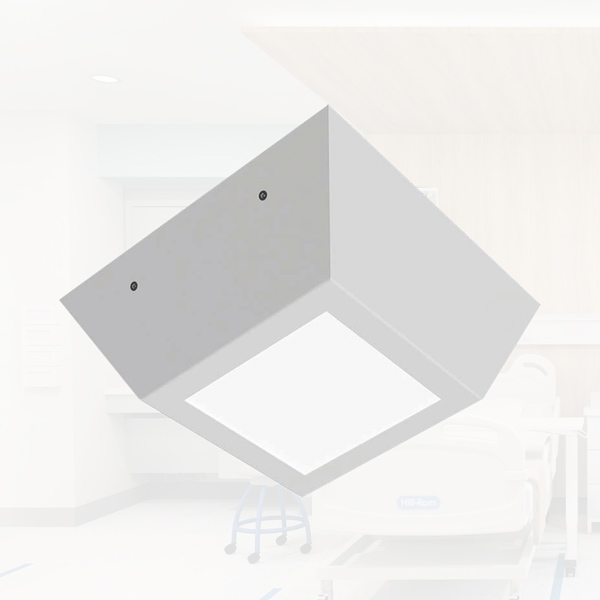

The BHS LED combines maximum security construction with energy saving technology. The BHS is ideal for confinement/security applications. This surface mount luminaire is perfect for applications such as inmate cells, behavioral health, secure corridors and general population areas. ETL listed for damp locations.
FASTENERS: Stainless steel tamper-resistant center pin TORX screws standard. Allenhead screws with center pin optional.
ELECTRICAL SYSTEM: Electronic driver 120-277V, standard 0-10V dimming. Long-life LED system rated for >100K hours (L70 @ 50°C). Complies with federal energy efficiency standards.
OPTICAL SYSTEM: Various lensing options available. Available with choice of inner and outer lenses, prismatic inner lens and clear outer lens recommended.
LISTINGS: ETL and CETL listed for damp locations. Manufactured in the USA, BAA Compliant.
FINISH: The BHS is TGIC polyester powder coated white using a 5-stage pre-treatment. Consult factory for other finishes.
HOUSING: Clamshell housing combines one-piece die-formed, seamless, and door-less housing which maximizes impact resistance and prevents contraband concealment and unauthorized fixture penetration. Available in various materials and thickness. The corners are seam welded and smooth.
LED: 2700K, 3000K, 3500K, 4000K and 5000K CCT LEDs, >82 CRI. 90 CRI available. Life is >100,000 hours at 70% lumen maintenance.
BACKPLATE: 4″ minimum die-formed blade trap is preventative against contraband concealment and access to the fixture. Embossed standoffs prevent distortion.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at: www.aelnow.com/warranty
BASWL – Surface Mount LED Correctional Vandal Resistant Prison Grade
