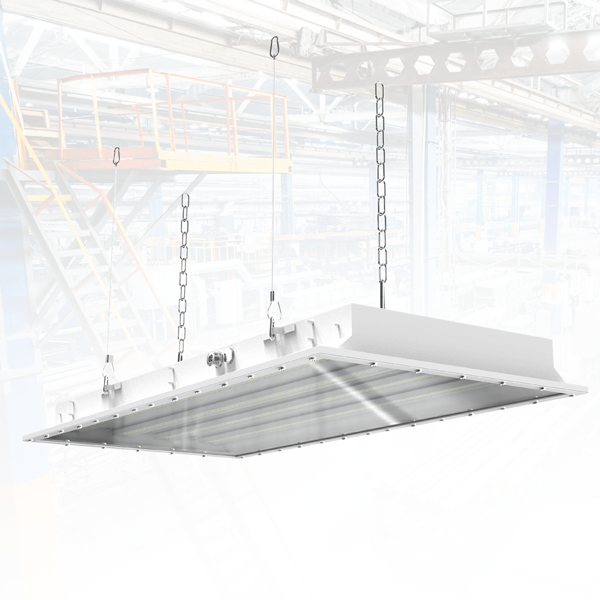

Our XPF series LED linear luninaires are designed to provide ideal illumination in the harshest environments, also
suitable for marine applications. Available in four common sizes, it is certified for use in Class I, Division 2 and Zone 2
locations and others made hazardous by the presence of flammable vapors or gases or combustible dusts.
CONSTRUCTION: CRS body with high-quality powder-coating is standard. Stainless steel hardware.
OPTICS: PC/Glass (Notice: Glass diffuser comes with wire guard part for safety).
BEAM ANGLE: 120 degrees.
ELECTRICAL SYSTEM: High luminous efficacy – Up to 130 lumens per watt, and 0-10V dimming is standard. LED lumen Maintenance: L70> 150,000
Operation Hours @ 55°C. CRI 70, and 5000K CCT. AC120-277V/AC200-480V (Class I, Division 2); AC100-277V (Zone 2/22). Over-voltage, over-current
and short-circuit protection.
LISTINGS: Approved to CSA, ETL AND UL standards. UL 844 Hazardous Locations Class I Division 2, Groups A, B, C, D Class I, Zone 2, Group IIA, IIB,
IIC UL 1598 Wet Locations UL 924 Emergency Lighting, ETL, IP66/IK10 rating with wire guard. IECEx Certificate number: IECEx CSAE 21.0013X Ex db
ec IIC T6/T5/T4 Gc Ex tc IIIC T80°C/T95°C/T100°C Dc ATEX Certificate number: CSANe 23ATEX1213X II 3GD Ex db ec IIC T6/T5/T4 Gc Ex tc IIIC
T80°C/T95°C/T100°C Dc.
OPERATING TEMPERATURES: for Class I, Division 2: T4/T100°C -40°C to +60°C. Normal for Zone 2: T6/T80°C -40°C to +45°C, T5/T95°C -40°C to
+55°C, T4/T100°C -40°C to +60°C.
MOUNTING: Ceiling or pendant mounting.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
