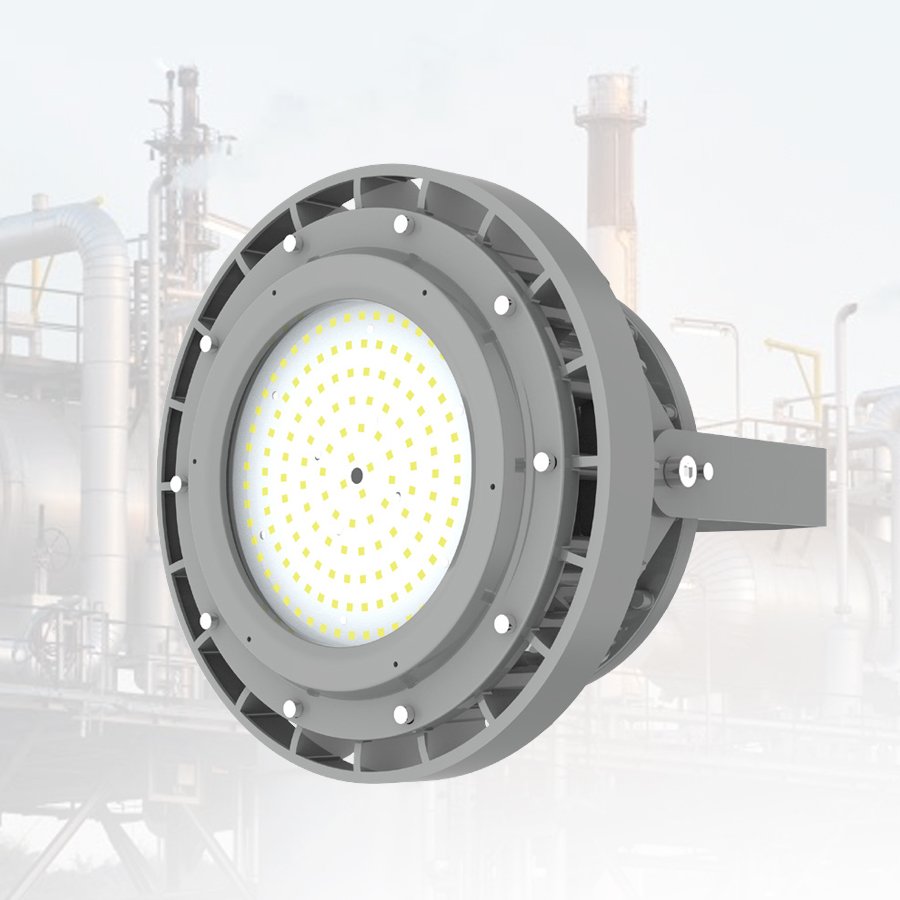

The XPC Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations
where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient
can be expected. Designed for use in heavy industrials storage, paper mills, wastewater treatment plants, loading
docks, offshore environments, chemical processing, power plants, petrochemical processing, metallurgical, coal mine,
food and the alcohol manufacturer industry.
CONSTRUCTION: Copper-free aluminum housing for great corrosion resistance and cooling performance. Impact resistance is at IK08 (with glass cover) and IK10 (with wireguard) certified. Tempered glass is standard.
BEAM ANGLE: All units are available in 40, 60, 90 and 120 degrees.
ELECTRICAL SYSTEM: High luminous efficacy – Up to 140 lumens per watt, and 0-10V dimming is standard. LED lumen Maintenance: L70> 150,000 Operation Hours @ 55°C. CRI 70, and 5000K CCT. Power factor >0.65.0. Input voltage: 100-277/200-480VAC
LISTINGS: Approved to CSA, ETL AND UL standards. UL 844 Hazardous Locations, Class I Division 1, Group C, D, Class I Division 2, Group A, B, C, D, Class II Division 1, Group E, F, G, Class II Division 2, Group F, G, Class III, Class I, Zone 1, Group IIB, Class II, Zone 21, Group IIIC, UL 1598 Wet Locations, UL 1598A Marine Outside Type, UL 924 Emergency Lighting, CSA C22.2#137:2018 Ed.2, CSA C22.2#250.0:2021 Ed.5, ETL (ATM for Report
105342415DAL-001/003), ABS, IP66, IK08 (glass cover), IK10 (with wire guard), and tested to 1000 hours salt spray.
OPERATING TEMPERATURES: -40°C to 60°C (-40°F to 140°F)
MOUNTING: Can be mounted in a variety of ways.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
