ILLUMINATION

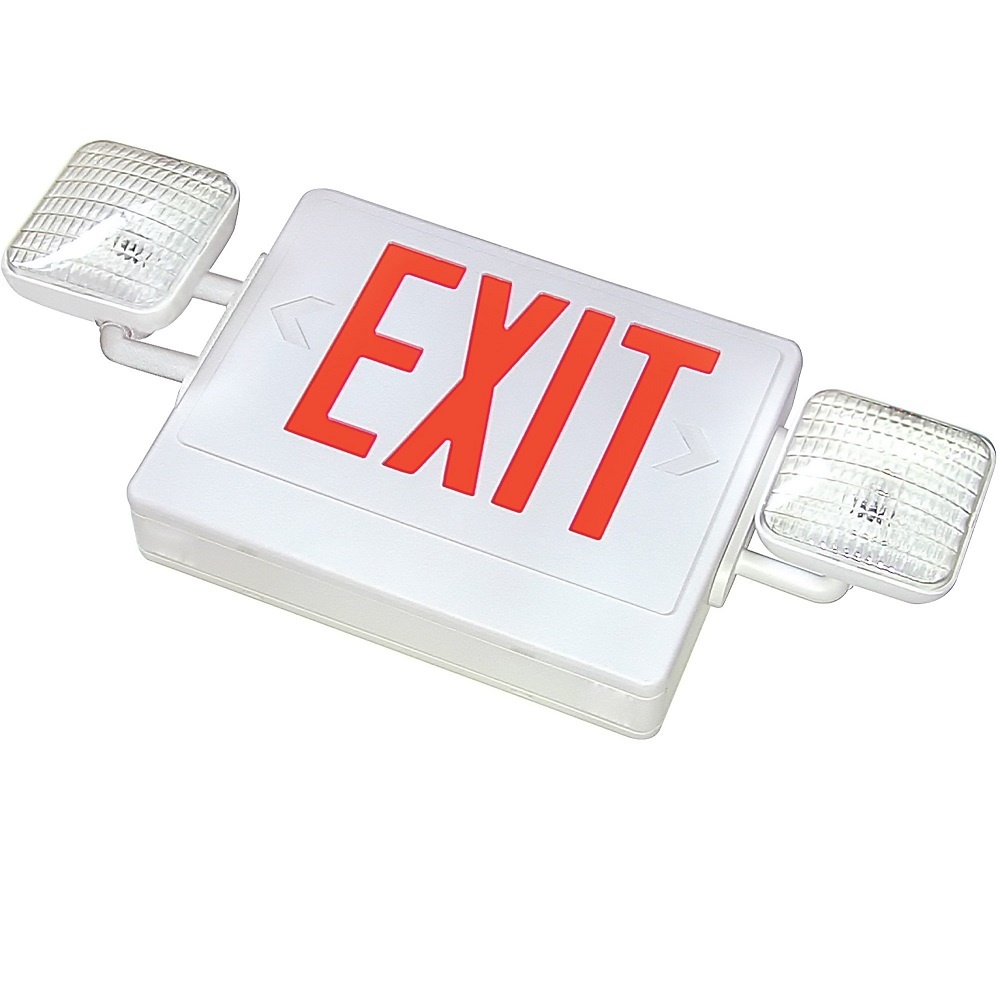

• Two fully adjustable 5.4W, glare-free lamp heads.
• Smooth thermoplastic reflector and plastic lens for optimal light distribution.
• Ultra bright, energy efficient, long life Red or Green LED EXIT sign illumination.

ELECTRICAL
• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deep discharge.
• 6V maintenance-free, rechargeable sealed lead acid battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board and lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING
• EZ-snap mounting canopy included for top or end mount.
• Universal knockout pattern on back plate for wall mount.

HOUSING
• Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
• EZ snap-out Chevron directional indicators.

OPTIONS
• RC: Remote Capacity of up to 11.0 watts
• HTR: Optional internal heater for cold temperature
(-9°C – 40°C) applications.
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.

WARRANTY/LISTINGS
• Five year warranty on all electronics and housing. Battery prorated for two years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations (20°C – 40°C).
• Certified to CEC under Title 20 Regulations.
• Meets CSA C22.2 No. 141-02 requirements for unit equipment.
