Description

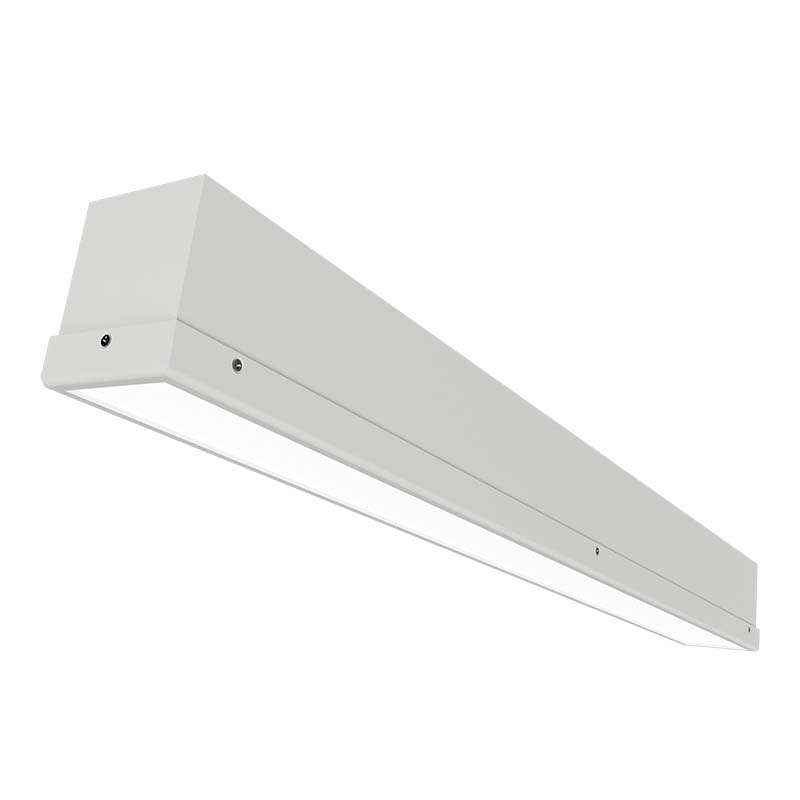

The XDLVPWL is a vandal resistant LED linear wet location surface mount fixture. Engineered for high abuse areas

Construction
Constructed of a precision cut, proprietary aluminum extrusion with flat end caps. Vandal-resistant doorframe prevents fixture abuse and seals the fixture. Available in custom RAL finishes.

Door Frame
Thick aluminum doorframeattaches to housing with tamper-proof Torx head with center pin fasteners. Doorframe seals to housing with gaskets to prevent water and dust from entering the fixture.

Mounting
Surface mounting installation. Special mounting bracket available for quick surface installation.

LEDs
High Output 80 CRI LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least 100K life hours (L70). 90 CRI available.Optics

Vandal-resistant frosted polycarbonate withstands high abuse, while providing optimal light transmission and LED diffusion.

Driver
0-10V dimming driver included standard. Driver options available for 1% dimming, Lutron EcoSystem, and DALI are available.

Finish
Matte white finish standard. Custom finish options are available in various RAL colors.

Listings
UL and cUL listed. RoHS compliant. Suitable for wet locations under covered areas. Manufactured in the USA, BAA compliant.
