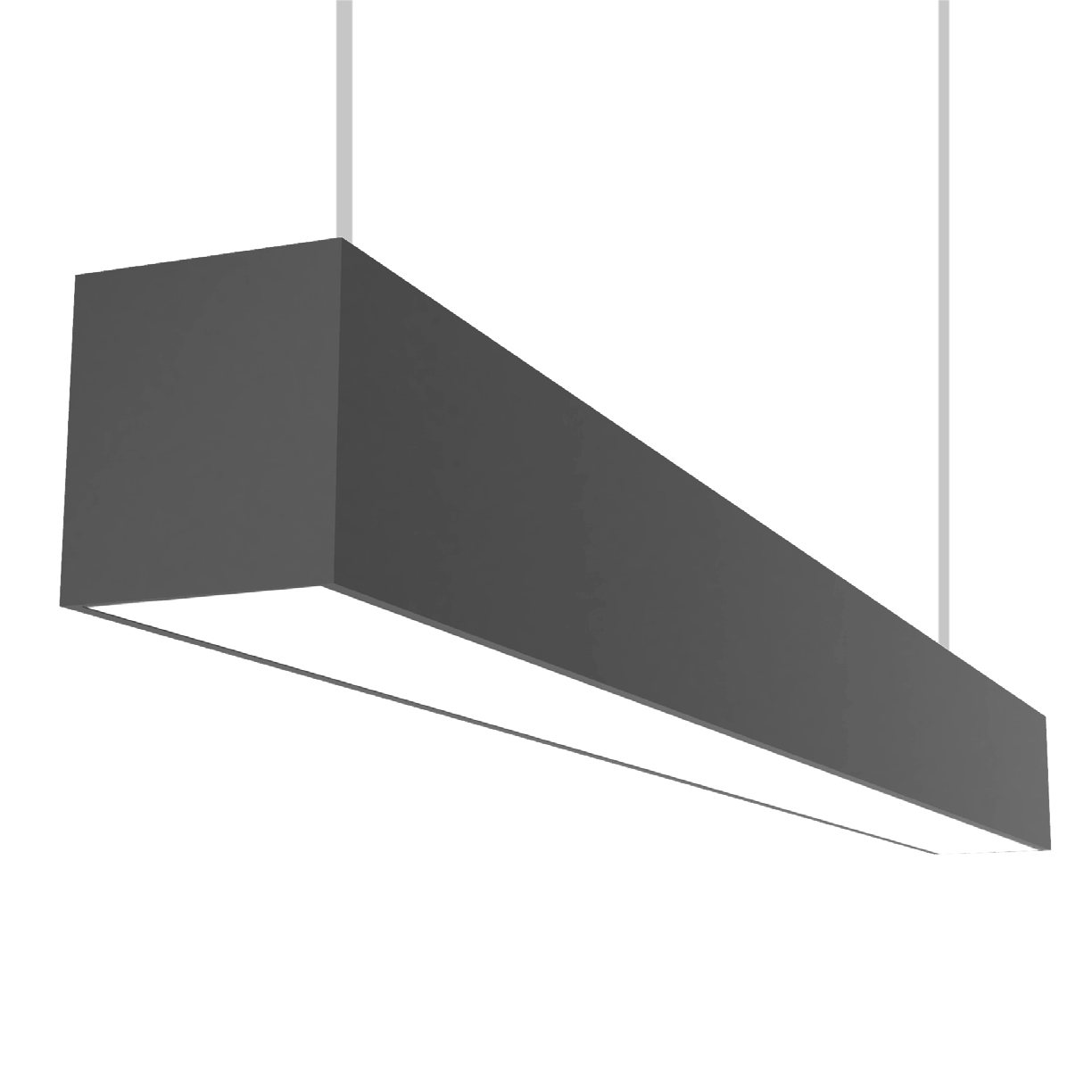

The XDLSWW is a suspended LED linear wall wash fixture, designed with quality craftsmanship and beautifully finished. The XDL series provides clean lines, smooth continuous runs, and tight lens fitment. Available for continuous run.
CONSTRUCTION: Constructed of a precision cut, proprietary aluminum extrusion with flat end caps. Internal joiner system. Available in any length with a 1′ minimum. Angled wall wash reflector.
MOUNTING: Designed for suspended mounting. If hanging canopies are ordered, one power feed and one non-power feed per fixture should be ordered. If additional or custom options are needed, consult factory.
LEDS: High Output LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least 100K life hours (L70).
OPTICS: Snap-in satin acrylic lens fully diffuses the appearance of the LEDs and provides excellent light transmission. Driver 0-10V dimming driver included standard.
DRIVER: Options available for 1% dimming, Lutron EcoSystem, and more.
FINISH: Matte white finish standard. Custom finish options are available in various RAL colors.
OPTIONS: Various options are available. If additional or custom options are needed, consult factory.
LISTINGS: BAA and BABA compliant. Designed and manufactured in the USA. ETL listed. Design conforms to the basic requirements of NSF.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty
