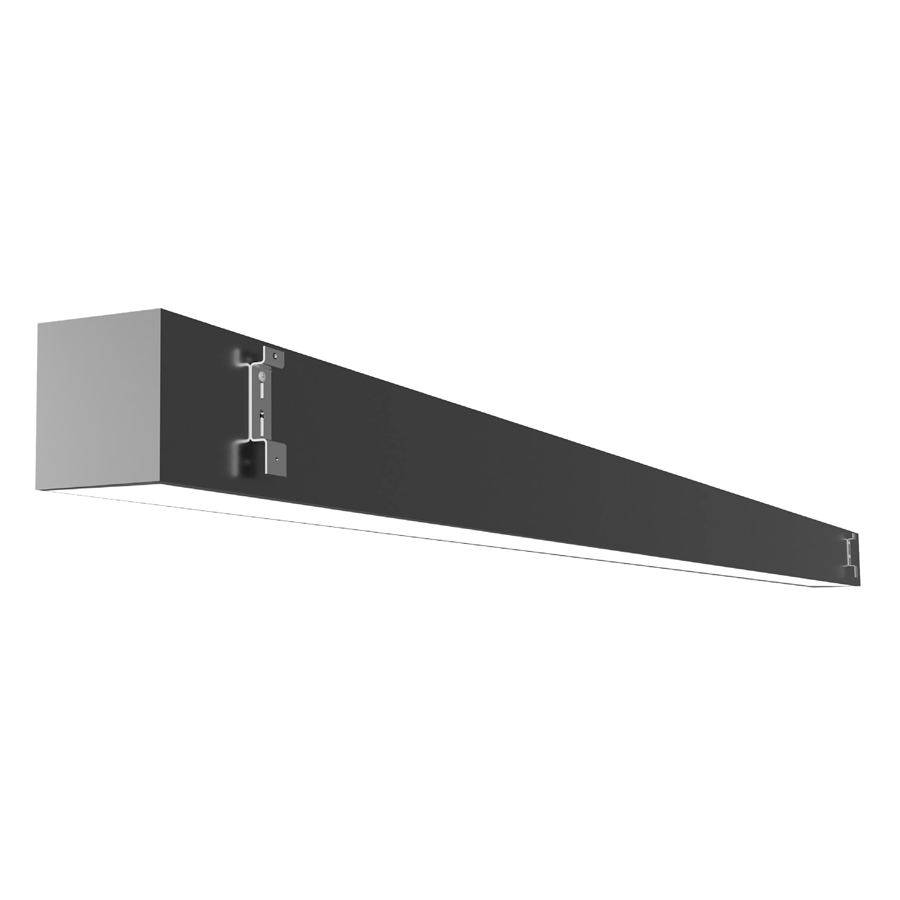

THE XDL4DC IS A HIGH-PERFORMANCE LINEAR FIXTURE DESIGNED FOR USE IN DATA CENTERS, INDUSTRIAL SETTINGS, AND OTHER TECH RELATED ENVIRONMENTS. Our XDL series provides clean lines, smooth continuous runs, and tight lens fitment. Also available custom angles and lengths. The XDL4DC will easily mount to grid systems such as TATE GLOBAL, GORDON, ARMSTRONG, and many more. This is a proprietary extrusion fixture that utilizes marine grade aluminum for durability and strength, lightness, and a clean-edge architectural appearance. When combined with our legendary attention to detail and the use of premium components, all of our ATECH Fixtures are well suited to tech-centric environments. Also, our ATECH fixtures take advantage of specific components that help our fixtures stay cooler.
• CONSTRUCTION: Constructed of a precision cut, proprietary aluminum extrusion with flat end caps. Internal joiner system. Available in any length with a 1′ minimum (standalone). Continuous run fixtures can be ordered in any size (for example: 33’-5 1/2”).
MOUNTING: Lay-in grid fixtures fit 9/16 and 15/16 standard T-grids. Flanged mounting and flangeless trim mounting options include innovative top mount bracket to support the fixture.
LEDS: High Output LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least 100K life hours (L70).
OPTICS: Snap-in satin acrylic lens fully diffuses the appearance of the LEDs and provides excellent light transmission.
DRIVER: 0-10V dimming driver included standard. Driver options available for 1% dimming, Lutron EcoSystem, and DALI.
FINISH: White finish standard. Custom finish options are available in various RAL colors.
TEMP-CONTROL: 2oz. copper circuitry with an .08” aluminum PCB board backer, mounted to a .060 aluminum reflector for high-efficient heat dissipation.
OPTIONS: Various options are available. If additional or custom options are needed, consult factory.
LISTINGS: BAA and BABA Compliant. Designed and manufactured in the USA. ETL listed.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty
