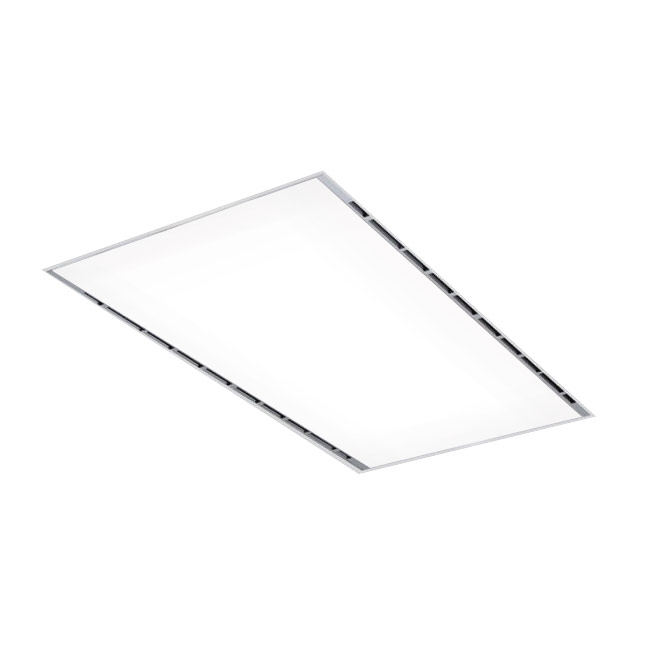

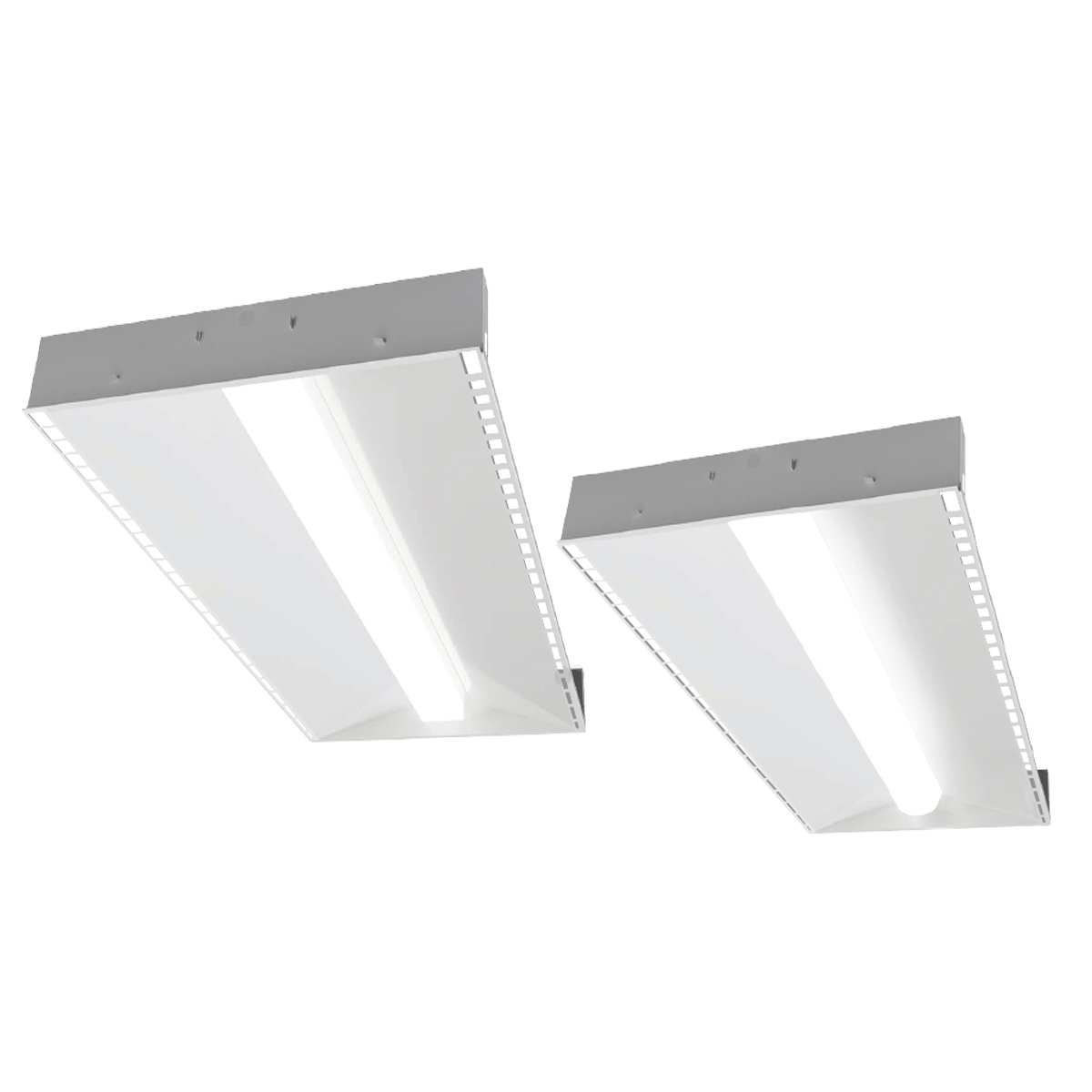

The LTRRA Series is an IC-Rated lay-In LED Troffer available in 2×2, and 2×4 body sizes. It was designed for standard T-Grid applications. Multiple lensing options are available, consult factory if additional options are needed. Architects find these fixtures especially functional for schools, offices, government facilities, public offices, and all other commercial types of applications on the market today. This fixture’s multi-use capability inspires its use in any area where energy efficiency is a must. The LTRRA is designed to be a high quality, energy efficient LED fixtures for use in hotel lobbies, offices, common areas, hospitals, museums, retail, schools, and professional business environments.

CONSTRUCTION: The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling.

MOUNTING: The fixture can be recess mounted in a standard grid ceiling.

FINISH: Highly reflective non-glare matte white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation increase efficiency, and inhibit corrosion.

ELECTRICAL SYSTEM: Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.

LISTINGS: Independently tested to IESNA LM-79 and LM-80 specifications. ETL and cETL Listed. Damp location rated. IC rated for dry and damp locations. Manufactured in the USA, BAA / BABA compliant.
