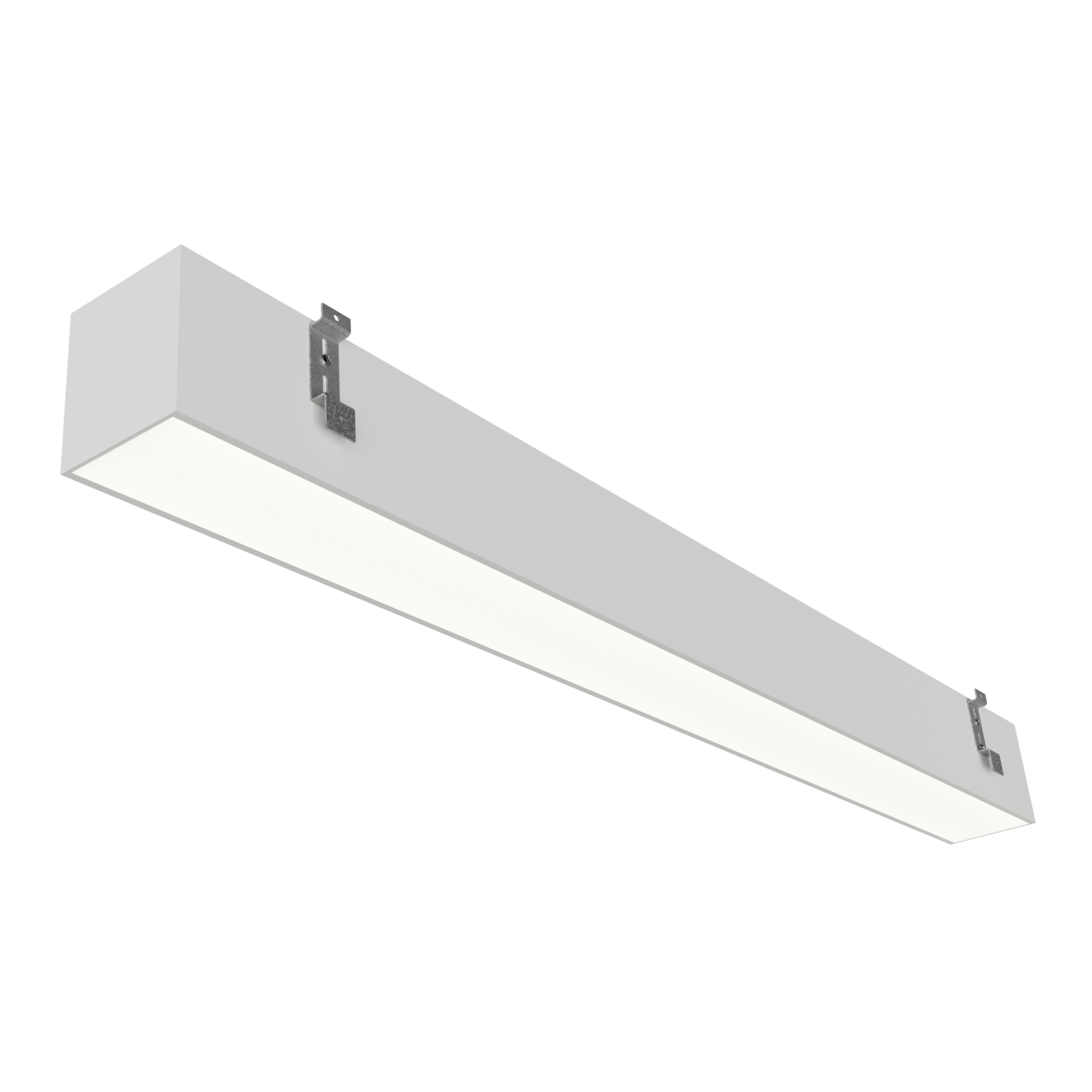

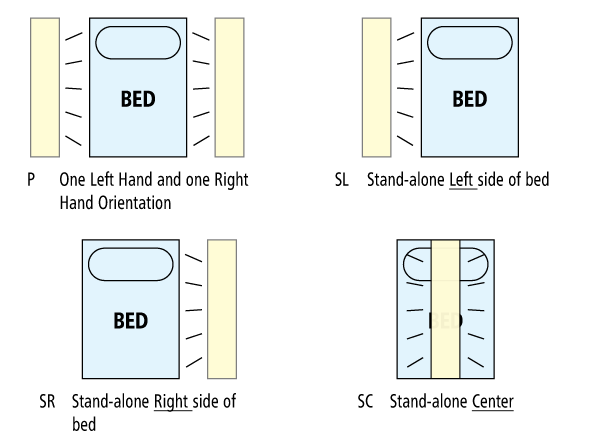

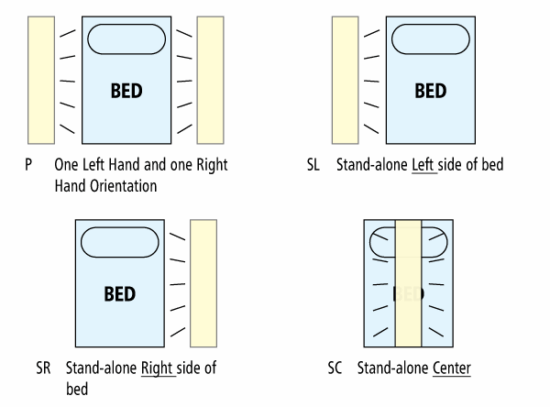

The fully enclosed MXDL4R offers ambient, reading, and/or examination lighting, dimmable to the appropriate lighting levels for each occasions. The small aperture is flush to the ceiling line, allowing quick, easy, as well as effective wipe-down. Separately switched ambient, reading and exam functions provide the ability to accommodate the many necessary activities performed in the patient room. Specify the nightlight as an option for an additional function (standard at 500 lumens). Typically used in pairs (left and right orientation available), and positioned along both sides of the bed, the MXDL4R offers glare and shadow free illumination.

Construction: Constructed of a precision cut, proprietary aluminum extrusion with flat end caps. Internal joiner system. Available in any length with a 3′ minimum.

Mounting: Lay-in grid fixtures fit 9/16 and 15/16 standard T-grids. Flanged mounting and flangeless trim mounting options include innovative top mount bracket to support the fixture.

LEDs: High Output LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least 100K life hours (L70).

Optics: Snap-in satin acrylic lens fully diffuses the appearance of the LEDs and provides excellent light transmission. Driver: 0-10V dimming driver included standard. Driver options available for 1% dimming and Lutron EcoSystem.

Finish: Matte white finish standard. Custom finish options are available in various RAL colors.

Options: Various options are available, including antimicrobial paint, left and right orientations, and a wide range of dimming options. If additional or custom options are needed, consult factory.

WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
