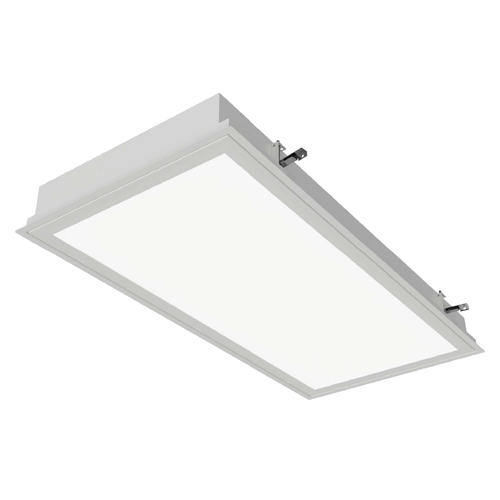

The MROR series is medical-specific designed Troffer for facilities that have 15/16”, 1-1/2” and 2” face T-bar ceilings. This fixture is manufactured here in the USA from heavy gauge cold-rolled steel, with a smooth surface and an attractive look. Available in 1×4, 2×2, and 2×4 body sizes. Multiple lensing options are available (consult factory if additional options are needed). Architects find these fixtures especially functional for medical/surgical uses due to the easy to clean surface and a very uniform and even light distribution. Reducing eye fatigue, and providing visual clarity, was also key in the design of this new fixture. This fixture’s multi-use capability inspires its use in any area where energy efficiency is a must, but high-quality is also required.
HOUSing: The fixture is constructed of a heavy gauge cold rolled steel body with precision welding. Housing embossed for maximum rigidity. Like all Advantage fixtures the housing is designed for maximum stability, longevity, and ease of installation.
DOOR FRAME: The door frame is manufactured from extruded marine-grade aluminum, flat with mitered corners. Fully enclosed spring-loaded cam latches and T-type hinges. Door frame is grounded to the fixture housing.
FINISH: Great care is taken into the fit and finish of this fixture. Standard finish is an anti-microbial white TGIC polyester powder coat (minimum 93% reflectivity). A proprietary multi-step process within our in-house paint department insures protection against corrosion and is quality-checked at each stage.
OPTICAL SYSTEM: A variety of lensing options are available. Standard is a #12 inverted frosted acrylic lens. MOUNTING: Designed specifically for NEMA Type “G” for 15/16”, 1-1/2”, and grid ceiling systems. NEMA Type “F” available. Four (4) earthquake clips are included. Installation is straight-forward and trouble free with this well designed fixture.
ELECTRICAL SYSTEM: 80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. 0-10V Dimming Driver included standard. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
LISTINGS: Independently tested to IESNA LM-79 and LM-80 specifications. ETL and cETL Listed. Damp location rated. IC rated for dry and damp locations. Manufactured in the USA, BAA / BABA compliant.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
