DESCRIPTION

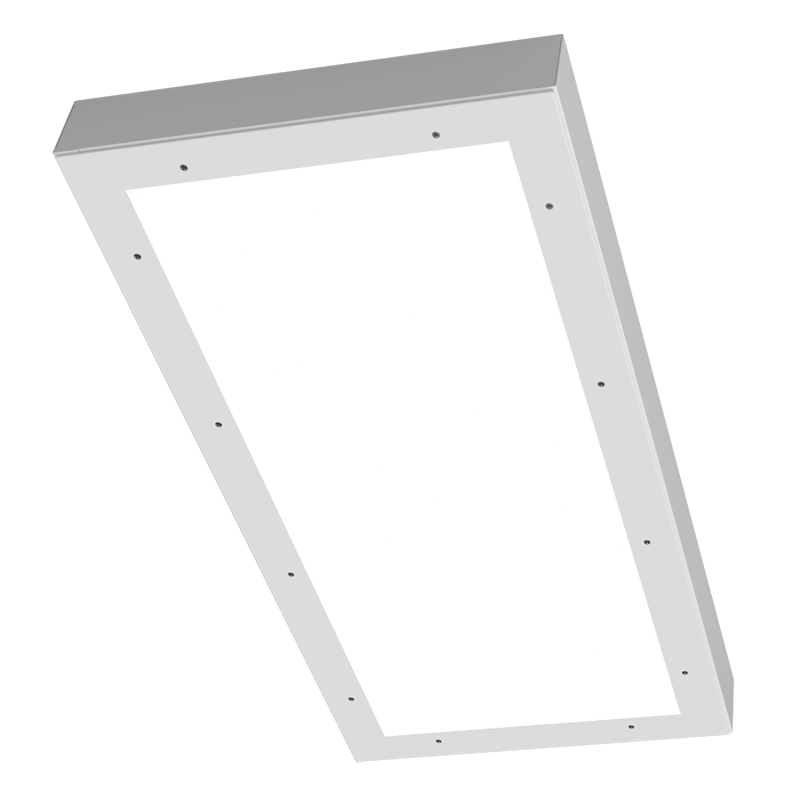

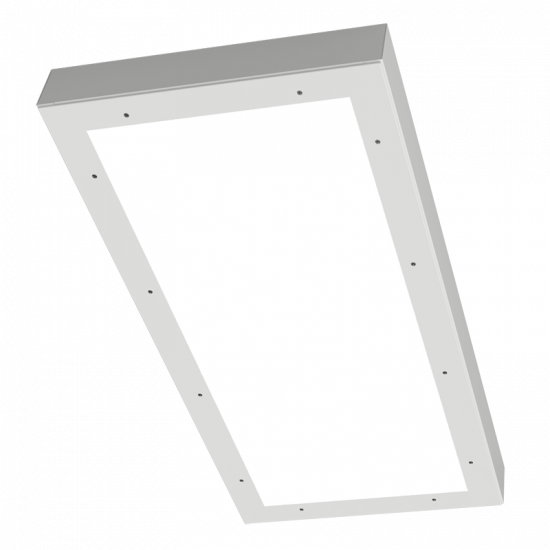

The MEI provides a supplemental, asymmetric/symmetric lighting solution in the operating room. MEI is available in 1×4, 2×2, and 2×4 sizes, and it is typically positioned aound the peremiter of the operating room. The is IP66 compliant, wet location listed standard, MILSTD 461G available, Anti-microbial matte white finish, Red and Green LED’s, and is the perfect choice in the operating room surgical suite. Available as Tunable White.
DOORFRAME
18-gauge CRS, one-piece inset construction corners. White TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Doorframe secured to housing with stainless steel aircraft cables and captive flush mounted Phillips head stainless steel fasteners. Antimicrobial finish standard on all exposed painted surfaces of installed luminaire.
Available as Tunable White with Advantage Tune (ATTW).
ELECTRICAL SYSTEM
Electronic, standard 0-10V, 1% and 10% dimming.
OPTICAL SYSTEM
Electrostatically applied, anti-microbial matte white powder coat. One-piece asymmetric/symmetric acrylic diffuser. RFI 3/8” square metal grid, grounded to the housing. Other lenses available, refer to Ordering Information.
LISTINGS
IP66. ETL listed for wet locations under covered ceiling.
MOUNTING
Surface Mount.
HOUSING
Die-formed heavy gauge steel. Seam-welded construction. Stainless steel or aluminum options. All doors attached to the housing with two stainless steel aircraft cables. Stainless steel Philips head screws painted to match door finish to secure door frame to housing. White TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Antimicrobial finish standard on all exposed painted surfaces of installed luminaire.
LED
80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is 50,000 hours at 70% lumen maintenance. Red (630nm) and Green (520nm) LEDs also available.
DOORFRAME GASKET
One-piece closed cell silicone gasket seals doorframe to housing.
WARRANTY
5 – Year Limiter Warranty. Complete warranty and terms located at: www.aelnow.com/warranty
