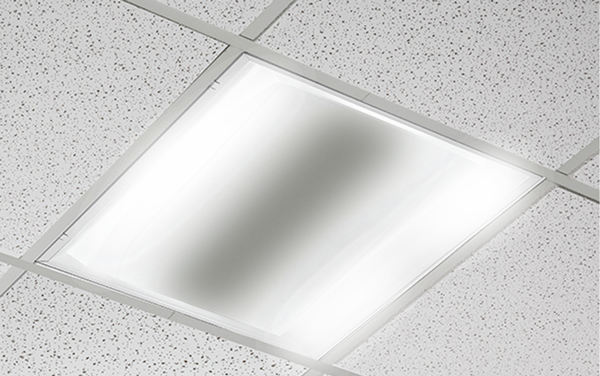

The MCNCV Series is an IC-Rated LED troffer with a centered concave diffuser with perimeter lighting. Available in 2×2 and 2×4 body sizes. It was designed for standard T-Grid applications. Architects find these fixtures especially functional for health-care facilities, schools, offices, government facilities, public offices, and all other commercial types of applications on the market today. This fixture’s multi-use capability inspires its use in any area where energy efficiency is a must. Optional Low Voltage Controller (LVC) allows for patient/staff to easily control lighting remotely.

APPLICATIONS: The MCNCV Series of lay-in LED troffers were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, government facilities, schools, and public areas.

CONSTRUCTION: The fixture can be recess mounted in a standard grid ceiling. The fixture is constructed of a heavy gauge cold rolled steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Ballast cover snaps into housing to cover ballast and wires.

MOUNTING: The fixture can be recessed mounted in a standard grid ceiling.

OPTICAL SYSTEM: A centered concave diffuser constructed with a proprietary blend of LED acrylic and impact acrylic resins. Diffuser provides approximately 70% light transmission with excellent LED pixel hiding power. Standard 2-circuit configuration enables separate ambient and exam light usage. Additional options include a reading light and an amber light.

ELECTRICAL SYSTEM: 0-10V 1% dim-to-off Dimming Driver included standard. Long-life LED system rated for >100K life hours. Top mounted driver. 90 CRI is available as an option.

LISTINGS: Independently tested to IESNA LM-79 and LM-80 specifications ETL and cETL Listed. Damp location rated. IC-Rated for dry and damp locations. Manufactured in the USA. BAA / BABA compliant.

WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
