DESCRIPTION

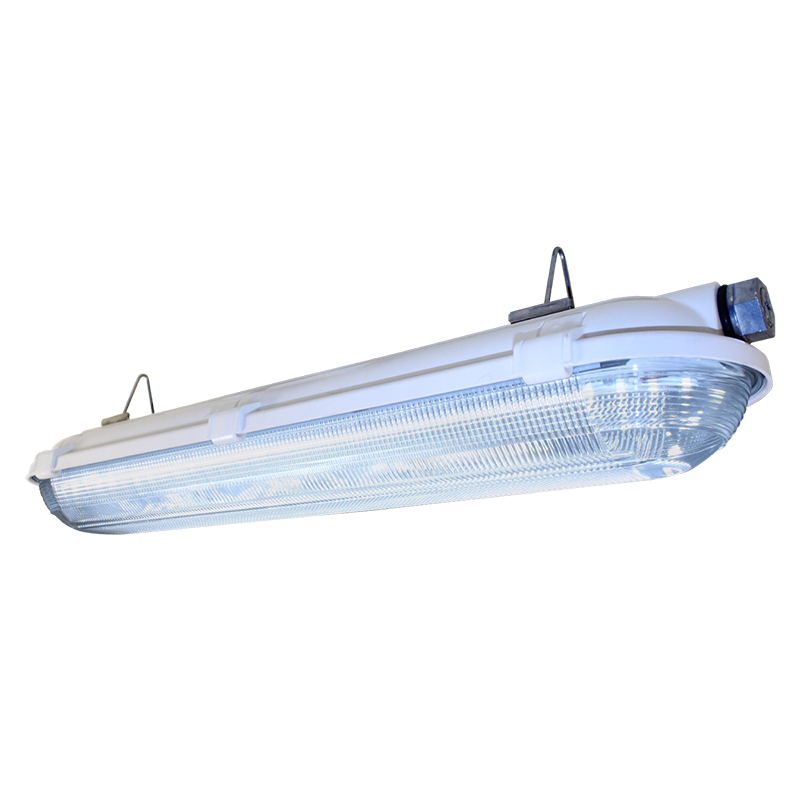

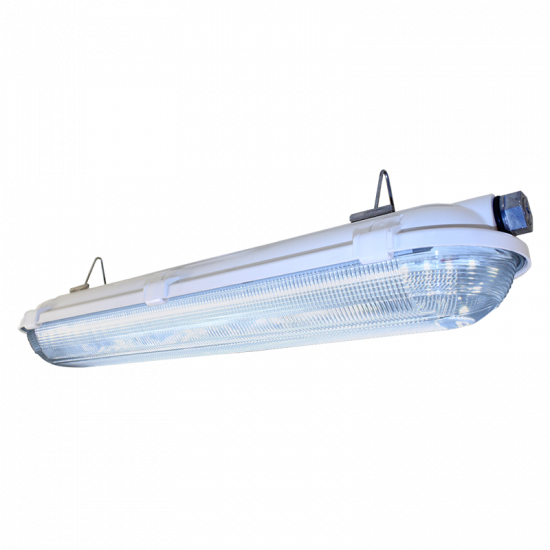

The LXVT series is an IP67/IP69K rated vapor tight, completely  sealed against dust and moisture, for harsh environments. Available with a variety of lenses, latches, and wire entry configurations to meet the needs of various applications. The LXVT utilizes state-of-the-art LED technology to deliver the  highest possible efficacy in the lighting industry.

APPLICATIONS
The LXVT series of vapor tights were designed for use in dusty,  dirty, and wet environments including food processing facilities,  cold storage, kitchens, parking garages, car washes, covered  canopies, pedestrian tunnels, concourses, and industrial  applications.

CONSTRUCTION
Constructed of a compression molded self-extinguishing  fiberglass reinforced polyester compound with UL 5VA flame  rating (ASTM D635-74). F1 weatherability rating. Continuous  perimeter poured in place gasket assures a consistent lens seal to  housing. Two 1/4-28 brass studs molded into back of housing for attachments of optional mounting brackets.

OPTICAL SYSTEM
Shallow low profile or ribbed deep lens options are available in a  variety of finishes and materials. Lenses are designed for even  illumination with no glare.

ELECTRICAL SYSTEM
120-277V applications, 0-10v dimming standard. Long-life LED  system rated for >100K life hours (L70 @ 45°C). Metal gear tray for  internal LED driver. Complies with federal energy efficiency standards.

MOUNTING
Standard 316 stainless steel straps for surface mounting, or  optional flush mounting bracket. Mounts to a snap-in-place  mount or hook.

LISTINGS
ETL and cETL Listed. Wet Location.  IP65,  IP66, IP67 rated. IP69K rated with lens options “RDRA” and “RCP”.

WARRANTY
5-Year Limited Warranty. Complete warranty and terms located at: www.aelnow.com/warranty.
