PRODUCT SPECIFICATIONS
DESCRIPTION

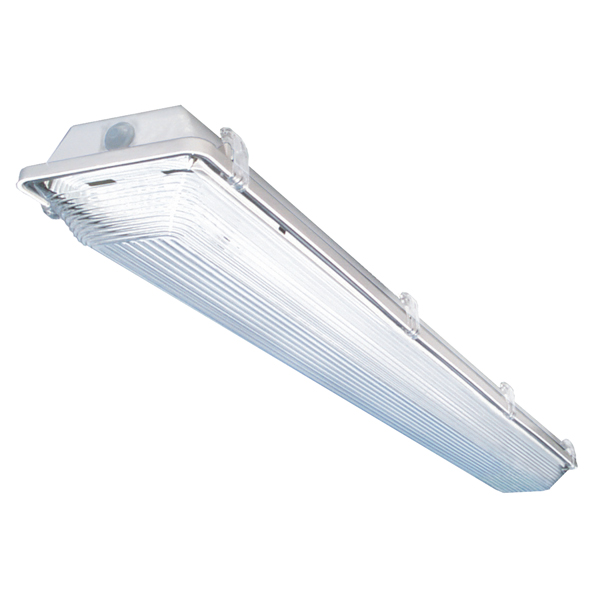

The LVT Series is a Commercial Grade LED Vapor Tight, gasketed enclosure that is completely dust and moisture resistant. The LVT utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry.
APPLICATIONS
The LVT Series of LED Vapor Tights were designed to be high quality, energy efficient LED fixtures for use in food processing facilities, kitchens, parking garages, canopy, stair well car washes, government facilities, schools, public areas and industrial facilities. Suitable for both indoor and outdoor applications.
CONSTRUCTION
The fixture is constructed of a fiberglass housing with a VA (f1) FRP UL rating, and an acrylic or polycarbonate diffuser securely positioned in a permanent, poured-in-place, polyurethane sealing gasket. The diffuser and upper components are locked in place and sealed tightly with polycarbonate retaining latches or optional stainless steel latches. High impact acrylic/DR material diffuser composition. Positive cam latches. Polyethylene molded end plugs.
OPTICAL SYSTEM
High output LED’s available in 2700K, 3000K, 3500K, 4000K, and 5000K. CRI >82. Diffuser softens light dissipation for even light coverage. Various lens materials available.
ELECTRICAL SYSTEM
0-10V dimming driver included standard. Long-life LED system rated for >120K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
CONTROLS
The fixture is compatible with 0-10V dimming controls, 0-10V dimming driver included standard. 50% step dimming is available upon request.
MOUNTING
The fixture can be suspended or surface mounted. Optional top only hub entry or combination top and end hub entry available for stem mounting applications. Die formed galvanized mounting brackets come standard. No holes required for mounting. Unitized internal/external brass mounting stud for structural integrity and continuity of ground.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. CSA approved. NSF International Certified. IP65, IP66 and IP67 Certified for Wet Location applications. Proudly made in America. Manufactured in Fort Worth, Texas.
WARRANTY
5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
