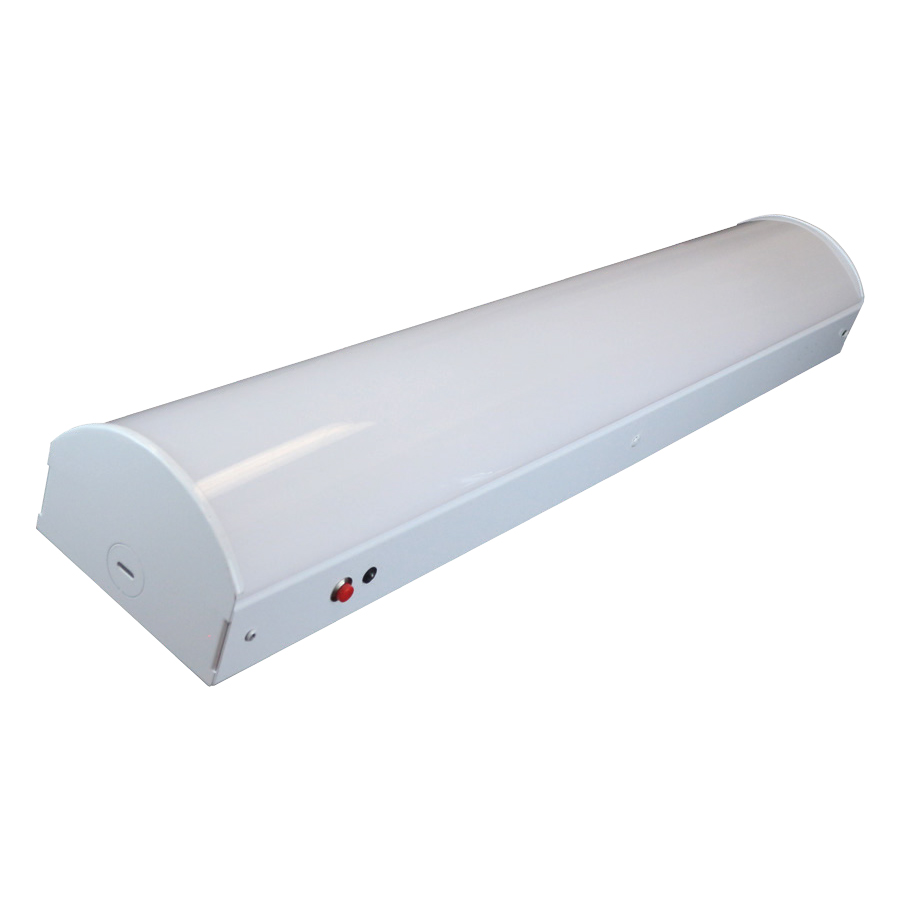

The LSWV40 is a highly-flexible stairwell LED luminaire that features user-selectable CCT and lumens, up to 40W (5320 lumens), an IK08 impact tested design, and vandal resistant hardware. Designed for stairwell applications, the LSWV40 can be used in a wide variety of other indoor, general ambient lighting applications including schools, hospitals and stores and is the perfect choice for both new construction and retrofits.
CONSTRUCTION: Durable 4-3/8” width, 22-gauge steel enclosure in a white powder coated finish, IK08 impact tested, 2’ and 4’ length. Vandal-resistant Pin-In Torx hardware. Flanged housing ends secure the lens in place. Several knockouts across the bottom of the housing and the two ends. All visible hardware in a white finish to match enclosure.
OPTICAL SYSTEM: UV-stabilized frosted polycarbonate lens offering an even, diffused light. Units provide a range of lumen packages by simply selecting the wattage desired for your application. 2’ unit – wattage selectable from 10W through 30W offering up to 3850 lumens. 4’ unit – wattage selectable from 12W through 40W offering up to 5320 lumens.
ELECTRICAL SYSTEM: Color switchable between 3000K, 3500K and 4000K CCT. Switch is located inside the fixture. L70 >100,000 hours. CRI ≥80 Electrical: Class 2 power supply, 120 to 277VAC, 50/60Hz. 0-10V dimming driver, 1-100% flicker-free dimming. 12V auxiliary output from the driver. 4KV driver protection. All units are provided with an integral microwave sensor, centered behind the lens. Sensor allows for 2 or 3 step – level dimming and has optional daylight harvesting capabilities. Settings can be adjusted via optional remote control accessory. See sensor details for default sensor settings. Sensor can easily be disabled for on/off fixture operation.
MOUNTING: The LSWV07 Series is designed for surface mounting on either a wall or ceiling.
LISTING: cETLus Listed for Damp Locations. Operating temperatures: -20°C to 40°C (-40°F to 104°F). DesignLights Consortium® (DLC) PREMIUM Qualified in the stairwell and linear ambient category (consult QPL for qualified models).
SENSOR: Highly sensitive ultrasonic motion sensor detects motion outside direct line of sightEasy setup with 5 minute walk test mode. Adjustable sensitivity and time delay of 5, 10, 15 or 30 minutes. WARRANTY: 5 Year Limited Warranty on housing and electronics. Complete warranty and terms located at: www.aelnow.com/warranty.
