DESCRIPTION

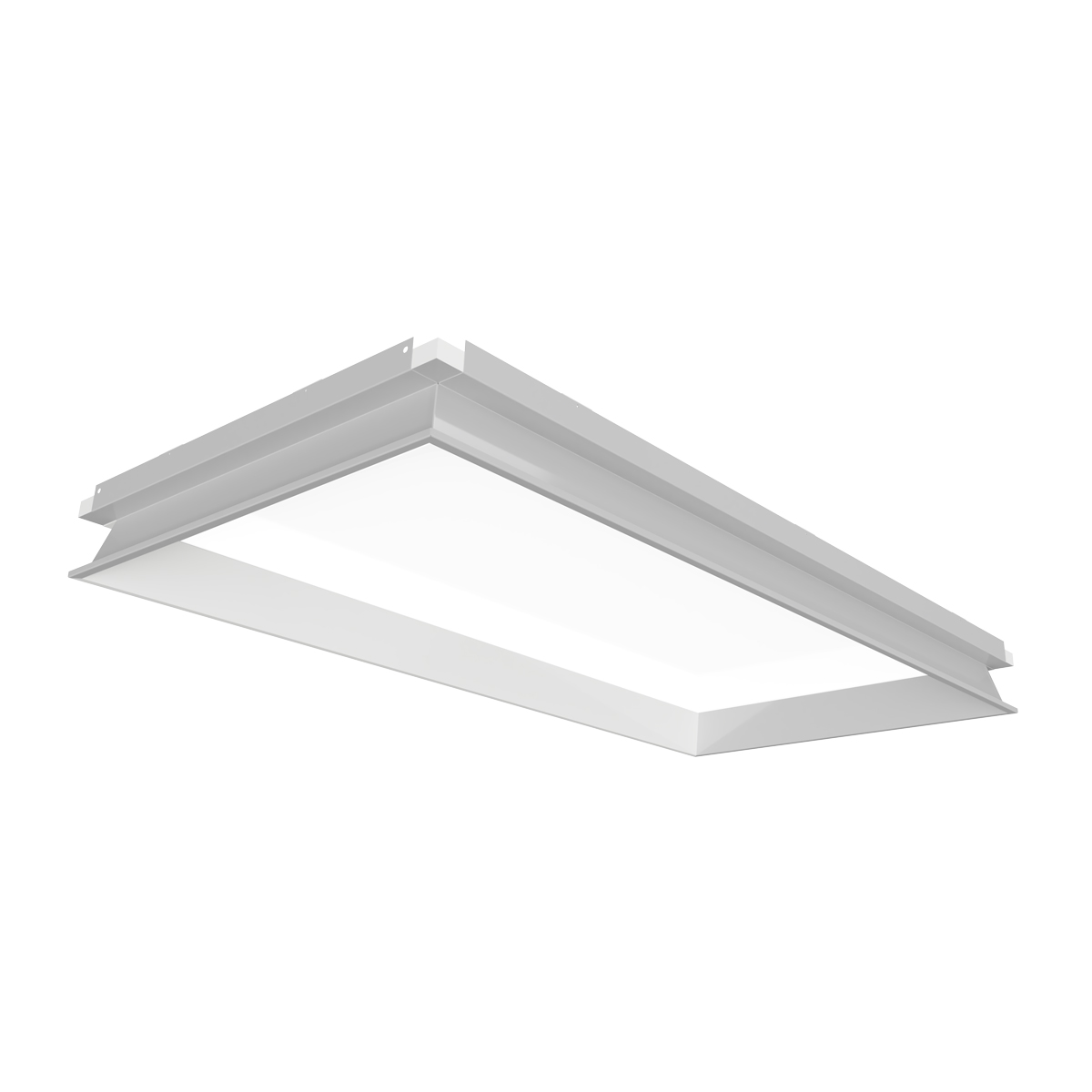

The LSLR is a recessed fixture with unique floating diffuser. Lens element features an optical microstructure providing glare control and high levels of efficiency. The LSLR features a one-piece, hinged bezel assembly that is easily removed for ease of maintenance. Standard Right Light levels from 1,000 to 4,000 lumens. Dimming options include DALI, 0-10V and Lutron EcoSystem. Integrates with wired and wireless building lighting control systems. Preferred Light: Lighting for better color rendition and human preference.

APPLICATIONS
The LSRL Series of Recessed Mount Luminaires are designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, hotel lobbies, museums, government facilities, schools, and other public areas.

CONSTRUCTION
Our LSLR is constructed of 22 Ga. steel housing. Bottom access 20 Ga. steel driver compartment. Positional brackets supplied as standard. Weight: 16 lbs.ct.

OPTICAL SYSTEM
The LSRL comes with a 2” regressed lens. High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Linear ribbed acrylic lens. White polyester polymer finish with a high reflectivity.

ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.

MOUNTING
This fixture is designed to be suspended. Continuous run available.

LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.

WARRANTY
5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
