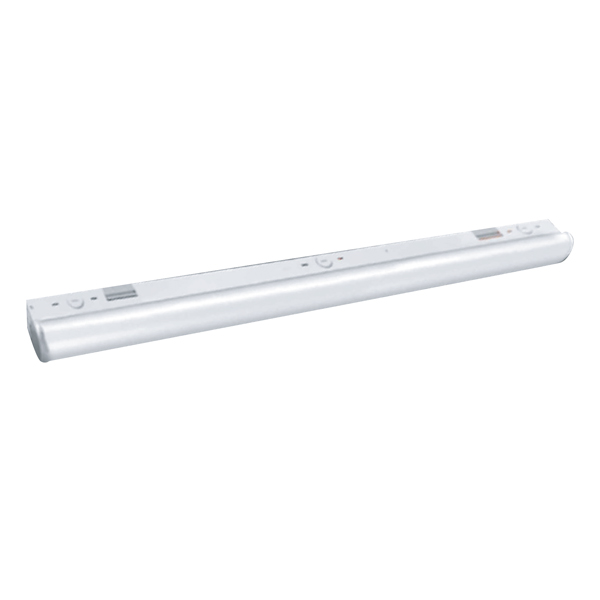

The LSCDR LED Covered Strip Luminaire is designed to deliver general, ambient lighting in a variety of settings. The LSCDR has a high-efficacy, which provides long life and uniform illumination. The versatility of our LSCDR ensures it is the perfect choice for both new construction and retrofit applications. The LSCDR Series is designed to be a high quality, energy efficient LED fixtures for use in hotel lobbies, offices, common areas, hospitals, museums, retail, schools, and professional business environments.
CCT: 3 color temperature selectable in the field.
CONSTRUCTION: The fixture is constructed of a heavy steel housing. Available in 4′, and 8′ lengths. Standard earthquake clips provide secure installation in grid ceilings. Strengthened ultra lightweight metal housing.
ELECTRICAL SYSTEM: This light is CCT selectable 35, 40 and 5OK. It is also wattage selectable 15W, 20W, 25W (2FT model), 30W, 40W, 5OW (4 FT model) and 5OW, 64W, 80W (8 FT model). It comes with a five year warranty. This light features seamless light distribution with prismatic acrylic lens. It is a time-saving and cost-effective alternative to full fixture replacement. 0-10 V dimming capability is standard. 130 to 145 lumens per watt. DLC 5.1 standard Listed.
MOUNTING: The fixture can be surface mounted or suspended.
LISTINGS: An independent laboratory tests our lights and LED components to ensure they meet the IESNA LM-79 and LM-80 standards. LED color temperature is warrantied to shift no more than 180K over the standard warranty period. Correlated Color Temperature (CCT) follows the guidelines set forth in the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. UL listed for damp location. * FCC Part 15 class B
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at: www.aelnow.com/warranty
