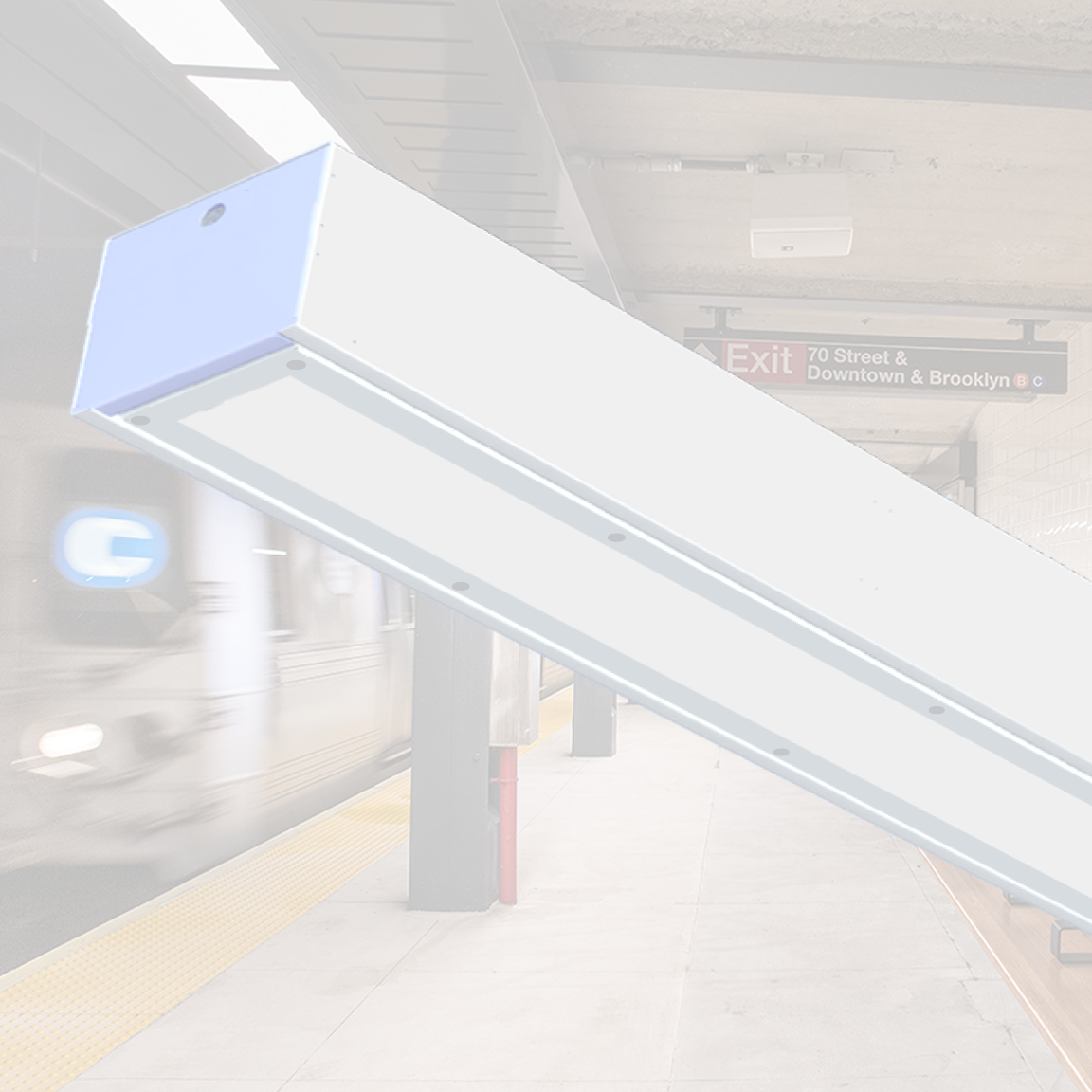

The LDL6WL Series is an architecturally designed surface mount or suspended, wet location steel LED Luminaire that is classically styled and fit for any installation. This series provides clean lines and tight lens fitment. Designed with wet location in mind and years of trouble free operation.

APPLICATIONS: The LDL6WL Series of Steel Luminaires are designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, museums, government facilities, schools, transportation facilities, sports facilities and public areas.

CONSTRUCTION: The fixture is constructed of a 6” wide heavy gauge steel body. The fixture is available in any run length within 1’ increments. Heavy duty housing crimped along sides for extra rigidity and straight alignment. Custom gaskets seal the fixture to make a wet location rated linear fixture. Available as a continuous run fixture. Standard with three knockouts on top (middle and on both ends) with other configurations available.

DOORFRAME: Doorframe attaches to housing with tamper-proof Torx head with center pin fasteners. Doorframe seals securly to housing with gaskets to prevent water and dust from entering the fixture.

OPTICAL SYSTEM: High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82 (90 CRI is available). Satin lens provides for a beautiful architectural design while maintaining optimal light output. Lens has an rating of IK10.

ELECTRICAL SYSTEM: Electronic drivers are available for 120/277V applications. >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.

Mounting: This fixture is designed to be either suspended or surface mount mounted.

LISTINGS: UL and cUL listed. RoHS compliant. Suitable for wet locations (IP65).
