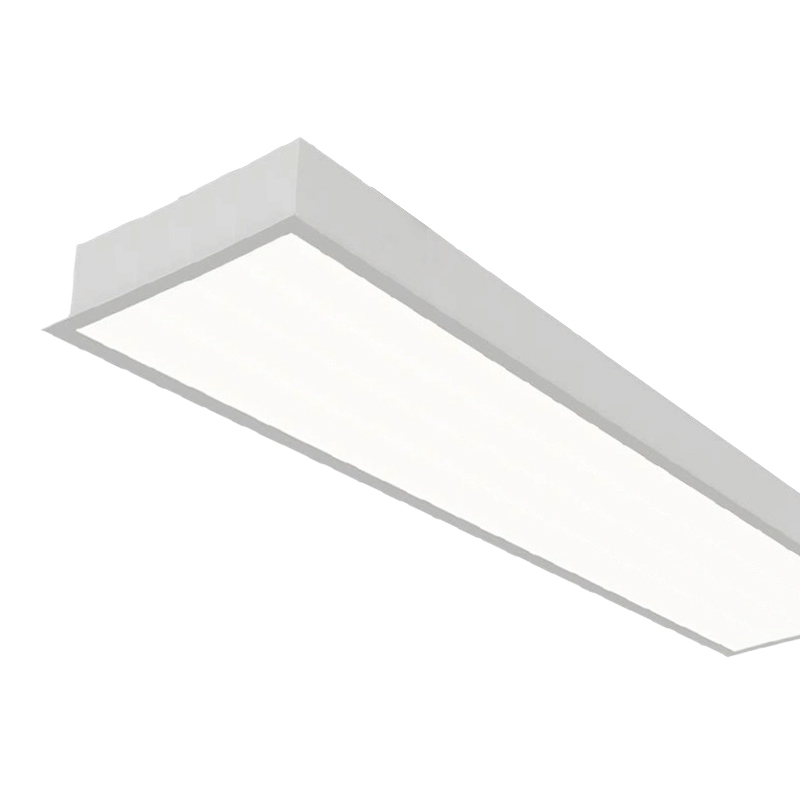

The LDL12OR is an all new lighting solution specifically designed for use in operating room ceilings. This fully customizable lighting system can be easily configured and adapted to your specific needs. Flexibility is a key feature – with any shape
possible and a wide range of options to customize to a surgery suites specific needs. Like all of our LDL series, you get clean
lines, smooth continuous runs, and a tight lens fitment. Installation is an easy and trouble-free process. This LDL fixture is the
future for a modern, sleek, and high performance surgery suite lighting solution.
CONSTRUCTION: Constructed of a precision cut, heavy gauge cold rolled steel with an internal joiner system. Customizable in almost any
shape.
MOUNTING: Designed to install into surgery suite ceilings. Custom designed brackets insure a stable lighting fixture.
LEDS: High Output LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least
100K life hours (L70). Wired for inboard / outboard dual switching with a 70/30 split on specified lumens per foot.
OPTICS: A snap-in satin acrylic lens fully diffuses the appearance of the LEDs and provides excellent light transmission. Like all our fixtures,
even light distribution is always the goal.
DRIVER: 0-10V dimming driver included standard. Driver options available for 1% dimming, Lutron EcoSystem, and DALI. A remote driver
power box is also available.
FINISH: Anti-microbial finish is standard. If additional or custom options are needed, consult factory.
LISTINGS: BAA, BABA Compliant. Designed and manufactured in the USA. ETL listed.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty
