PRODUCT SPECIFICATIONS
DESCRIPTION

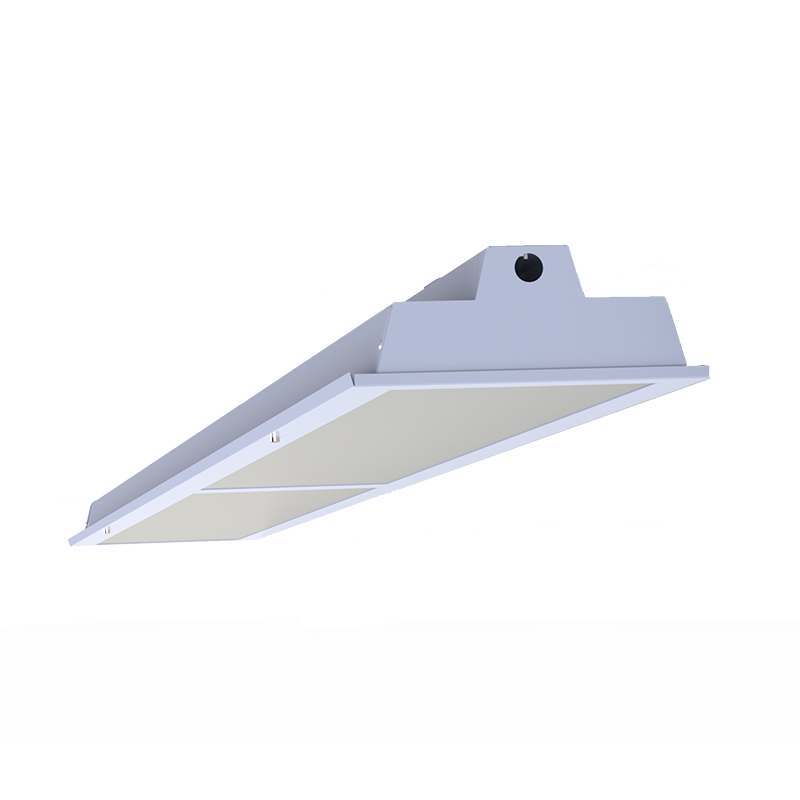

The LCHB Series is a louvered LED High Bay. It is designed for standard suspended or surface mounted high bay applications.
APPLICATIONS
The LCHB Series of Commercial High Bays are designed to be high quality, energy efficient LED luminaires for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a cold rolled steel body. Housing embossed for maximum rigidity. Baked enamel finish in white. This fixture is available in 4′ or 8′ lengths.
OPTICAL SYSTEM
Available in narrow or wide beam distributions. Optional white louver adds shielding. Lens options available – please contact factory for custom orders. Optional Wire-guard is compatible with all lensing and louver options.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). LED’s available in 3000, 3500, 4000, and 5000K. Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. 0-10 dimming standard.
MOUNTING
The fixture can be suspended or surface mounted. Multiple knockouts for easy mounting.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
