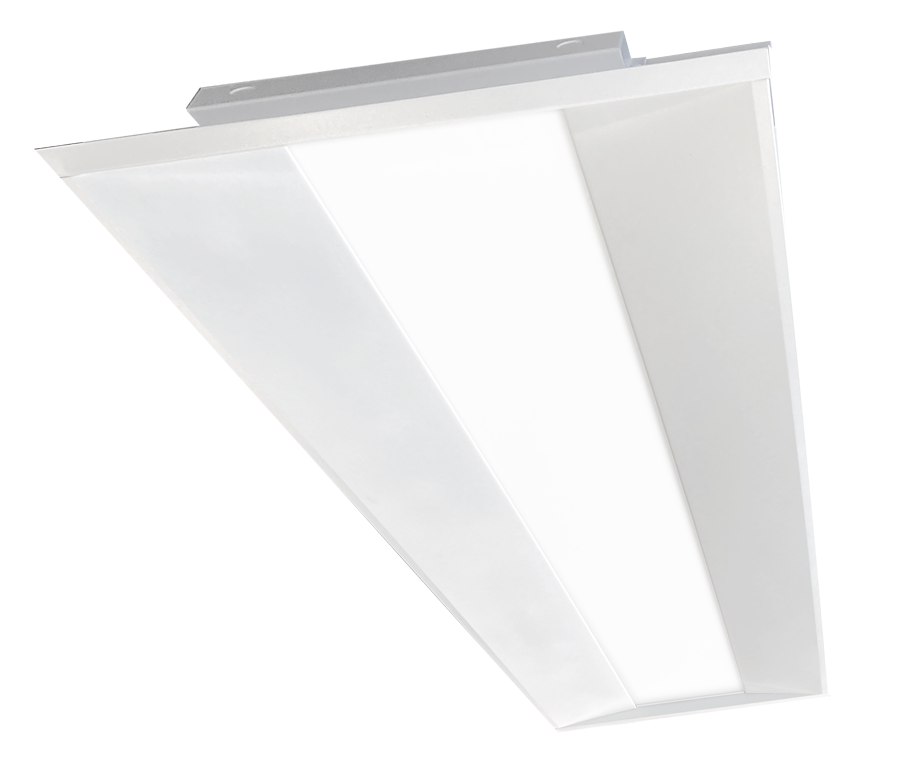

The LCBDR series is 2’x4’ center basket light that integrates a 1’x4’ LED flat panel. Sleek design provides a comfortable light environment and a contemporary appearance.

APPLICATIONS: The LCBDR was designed to be high quality, energy efficient LED fixtures for use in commercial applications, office buildings, government
facilities, schools, and public areas.

CONSTRUCTION: The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling.

OPTICAL SYSTEM: High transmission led flat panel distributes light efficiently and glare free and diffuses the appearance of the LEDs. High reflectance
white reflector distributes light through optical elements.

ELECTRICAL SYSTEM: Electronic driver 0-10V dimming standard. 120/277V applications. Additional driver options available. Long-life LED system rated
for >100K hours (L70 @ 50°C). Complies with federal energy efficiency standards.

MOUNTING: This fixture was designed to be recessed mounted.

LISTINGS: eTL, UL and cUL Listed. Damp location rated. Made in the USA.
