DESCRIPTION

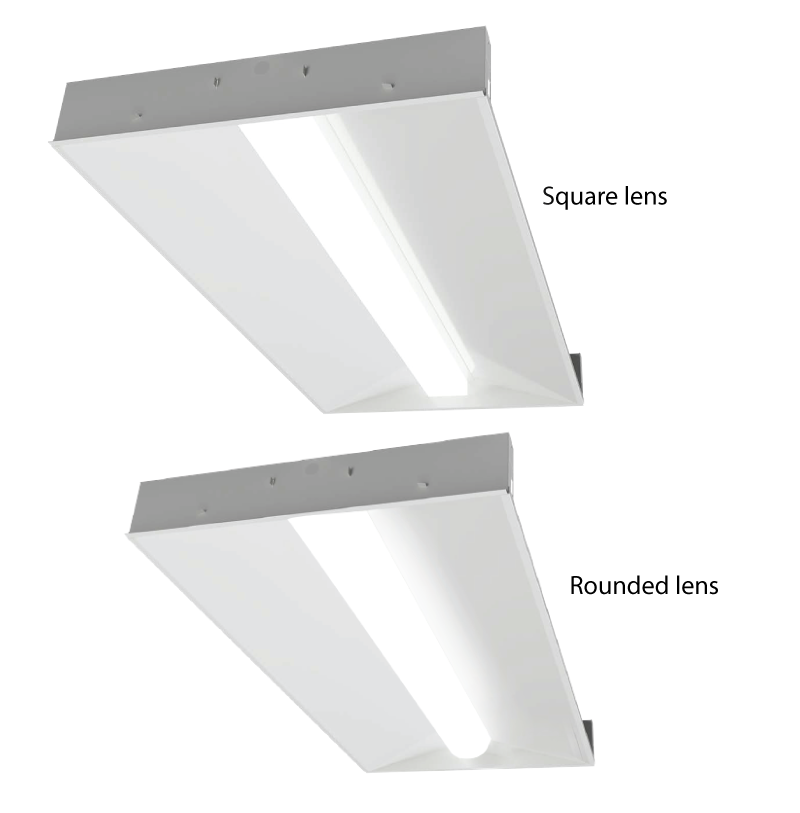

The LCBD series is a lay-In LED square center basket light available in 1×2, 1×4, 2×2, and 2×4 body sizes. Sleek design provides a comfortable light environment and contemporary appearance. Available with either a square or a rounded lens.

APPLICATIONS

The LCBD Series are designed to be high quality, energy efficient LED fixtures for use in commercial applications, office buildings, government facilities, schools, and public areas.

CONSTRUCTION

The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling.

OPTICAL SYSTEM

High transmission acrylic diffuser panels. High reflectance white reflector distributes light through optical elements.

ELECTRICAL SYSTEM

Electronic drivers are available for 120/277V applications. Long-life LED system rated for >50K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. 0-10 dimming standard.MOUNTINGThis fixture was designed to be recessed mounted.

LISTINGS

UL and cUL Listed. Damp location rated.

WARRANTY

5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/resources.
