PRODUCT SPECIFICATIONS

DESCRIPTION

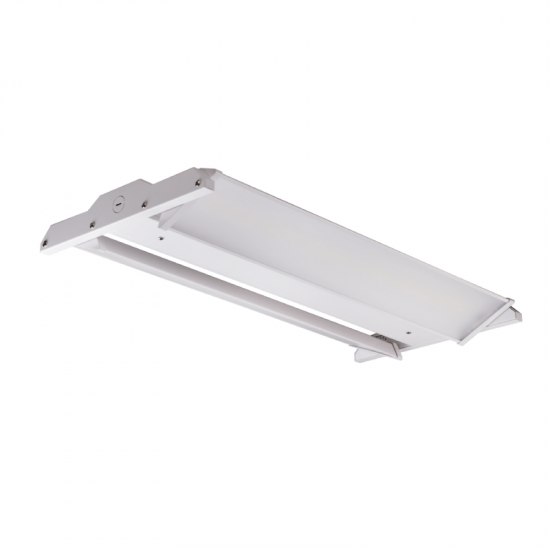

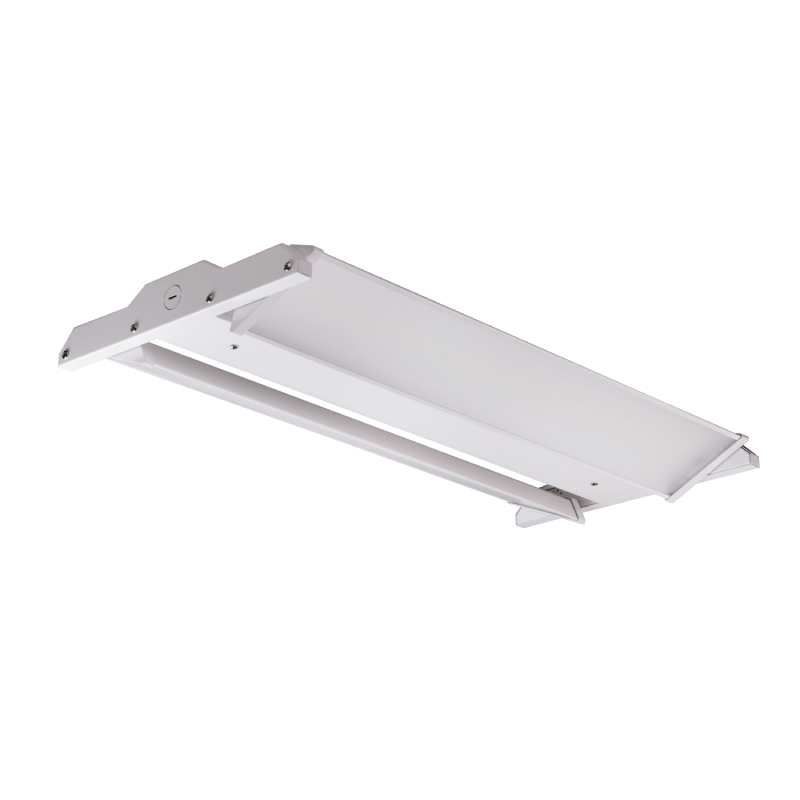

The LBHB is a LED Architectrual Style I-Beam High Bay luminaire designed to illuminate commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the LBHB provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

APPLICATIONS
The LBHB Series of Full-Body High Bays were designed to be high quality, energy efficient fixtures for use in commercial applications, offices, government facilities, schools, and public areas.

ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. 0-10 dimming standard.

MOUNTING
Suspension from chains (⅛” chain material, 38” long) is standard.
V-hangers, which attach the chain to the luminaire, are included.
Luminaire can be surface-mounted using pre-drilled mounting holes in the housing.

LISTINGS
U.L. standards. Listed for damp locations. Suitable for ambient temperatures from -20°C to 50°C (-4°F to 122°F). Complies with RoHS (Restriction on Hazardous Substances) requirements. Complies with FCC Part 15, class A. Complies with IEEE C.62.41-1991, input transient protection (2.5kV).

WARRANTY
5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
