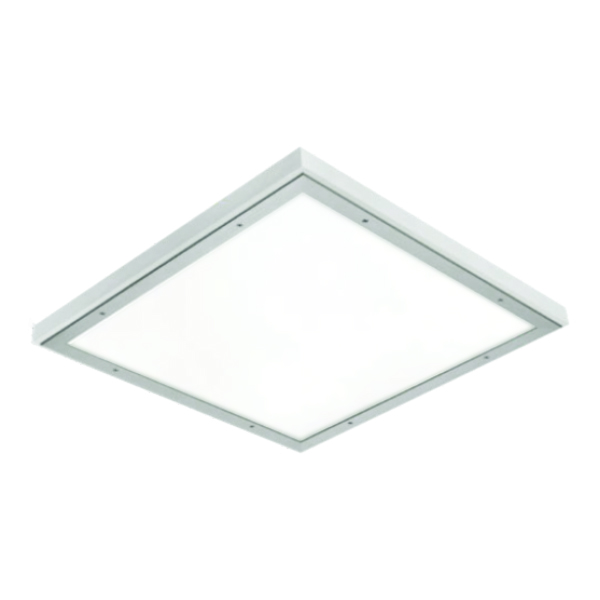

The FPT is our newest recessed luminaire designed for use in cleanroom, medical, and any application where an ISO 5-8, low profile luminaire is required. The FPT features even lighting in a sleek/low profile design and is available in 2×2 and 2×4 sizes. Flush mounted fasteners contribute to a clean look in this ultra-quality inset door fixture. The FPT is the perfect light fixture for cleanroom applications.
HOUSING/DOORFRAME: Comes standard with in precision 20 or 22-gauge cold rolled steel. Doorframe is made from die-formed aluminum with clear anodized finish as standard, and is secured to the housing with aircraft cables. Comes standard with flush mounted phillips head fasteners.
FINISH: Standard finish is white TGIC polyester powder coat finish – 5-step pre-treatment. Salt spray test: 1,000 hours; and a Reflectance of 92%.
OPTICS: Our FPT comes standard with a high-efficiency backing reflector and an outer diffuser in frosted acrylic (other lens options are available).
INSTALLATION: Designed for Type-IC recessed ceiling installation into 9/16″ and 15/16″ lay-in grid ceilings.
ELECTRICAL: Available in 3000K, 3500K, 4000K and 5000K color temperatures. Standard configuration is 80 CRI, but also available as 90 CRI. Voltage is standard at 120-277VAC, with 347VAC as an option. Standard 0-10V dimming with 10-100% range without dim-to-dark capabilities. Optional 0-10V dimming to 1% with dim-to-dark capabilities can be chosen in options.
OPTIONS: Options include a occupancy motion sensor (mounted behind light guide panel), with remote adjustment for dim level, timeout period and sensor sensitivity settings. Sensor provides 360° coverage at various mounting heights and coverage areas utilizing continuous wave radar. Other options include anti-microbial finish, an emergency battery, and a wide range of lumen outputs.
LISTINGS: This fixture is ETL and cETL listed. Suitable for ISO5-8 cleanroom environments and is designed for use in -20°C to 40°C ambient environments.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
