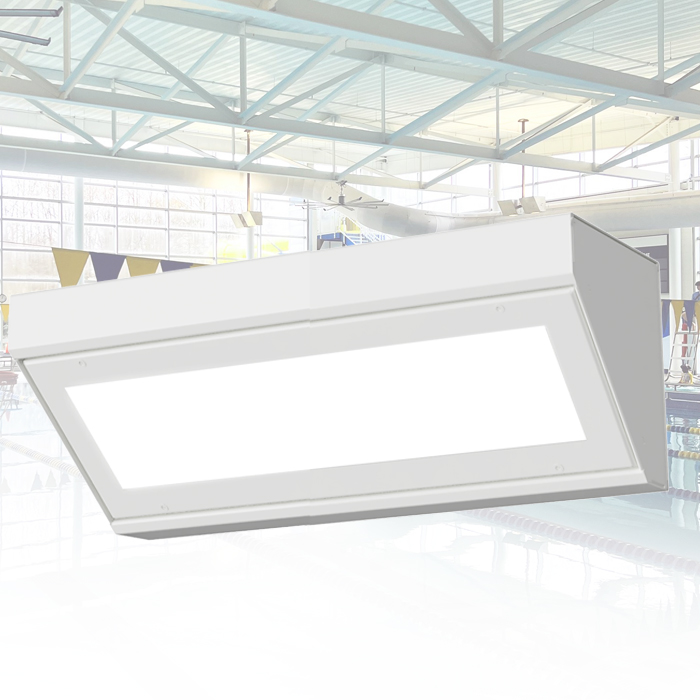

The CRNAT Series is an architecturally designed surface mount LED fixture. This is a great fixture for facilities like a natatorium or any environment where moisture vapor is higher than normal, and/or corrosive airborne materials such as chlorine or salt is present. The CRNAT series is designed to be a high quality, energy efficient LED fixtures with qualities that allow them to perform for a long time in challenging environments.
CONSTRUCTION: One-piece die-formed prime grade material as specified. Corners continuously seam welded and smooth. Sealed and gasketed with an IP65 rating. Knockouts can be ordering through ordering options.
OPTICAL SYSTEM: The fixture is provided with a precision formed, high efficiency symmetrical reflector to provide exceptional downward throw. Choice of lens material, if additional lenses are required, consult factory.
ELECTRICAL: Electronic drivers are available for 120/277V applications, 0-10v dimming standard. Long-life LED system rated for 100K life hours
(L70 @ 45°C). Complies with federal energy efficiency standards. Consult factory for special tuning to achieve specific lumen outputs.
MOUNTING: This fixture is designed for corner / wall / ceiling mounting, where the wall and ceiling meet.
NATATORIUM OPTION: Includes all the standard options, plus stainless-steel fasteners and a multi-step degrease and phosphate cleaning
process that includes deoxidizing and etching. This is followed by an a super epoxy finish with a very high chemical resistance. This finish is
specifically designed for these environments.
LISTINGS: Independently tested to IESNA LM-79 and LM-80 specifications. ETL and cETL Listed. Manufactured in the USA, BAA compliant.
WARRANTY: 5 – Year Limited Warranty. Complete warranty and terms located at: www.aelnow.com/warranty
