PRODUCT SPECIFICATIONS
DESCRIPTION

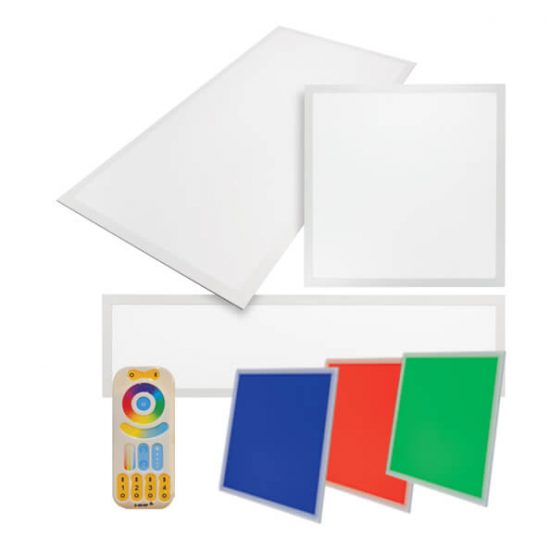

The CRGBW series is an extremely thin design flat panel that provides even illumination across the entire panel with no visible hot spots or shadows. Available in 1×4, 2×2, and 2×4 sizes. RGBW capability allows the color to be changed by choice of handheld remote 1024 channel DMX controller. Up to 6 panels can be controlled by the handheld remote when installed in the same room. Up to 6 panels can be on the same address when controlled with the DMX512 controlleer

CONSTRUCTION
Aluminum frame with seamless corners. Enlarged junction box to facilitate connections.

APPLICATIONS
The versatile CRGBW series perfect for setting a mood in offices, schools, government buildings, commercial applications, and any application that requires more than a standard white flat panel.

OPTICAL SYSTEM
PMMA GLP and Polycarbonate diffuser. Diffusion plate with more than 90% light transmittance. Acrylic light guide for even illumination.

ELECTRICAL SYSTEM
120 VAC, 50/60Hz, Output 24VDC. 36W (1×4 and 2×2), 60W (2×4). Available with LED driver and handheld RGB controller, or DMX addressable decoder for connection to a building DMX512 controller (sold separately). Operating temperatures: -20°C to 50°C (-4°F to 122°F).

MOUNTING
This fixture is designed for recessed mounting for T-bar ceiling installation. Suspended and surface mount kits are available

WARRANTY
5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty
