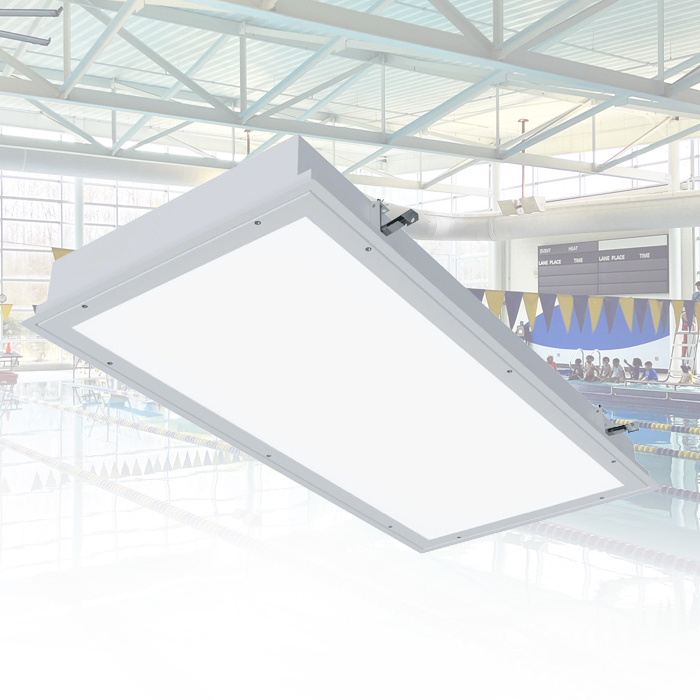

The CLNAT is an IP65, wet location, IC-rated luminaire which provides a cost-effective LED solution. A gasketed housing and door frame create a sealed enclosure. The CLD is available in 1×2, 1×4, 2×2, and 2×4 sizes. This is a great fixture for facilities like a natatorium or any environment where moisture vapor is higher than normal, and/or corrosive airborne materials such as chlorine or salt is present.
HOUSING: Various housing material options are available. If you do not see an option listed, please consult factory. Seam-welded construction. All doors attached to the housing with stainless steel aircraft safety cables, and are completely sealed with closed cell gaskets.
DOORFRAME: Inset or Overlap door frame options with choice of Stainless Steel, or Aluminum. White Door-frame secured to housing with stainless steel aircraft cables and Phillips head stainless steel fasteners. Closed-cell gasket completely seals the doorframe and the housing.
MOUNTING: Recessed grid and recessed flanged applications. Easy installation with adjustable 90° swing arm system standard. Universal mounting allows for both recessed flanged and recessed grid mounting (or into a hard ceiling).
OPTICAL SYSTEM: A variety of lensing options are available to fit the needs of any application. If additional lensing options are needed, consult
factory.
ELECTRICAL SYSTEM: Electronic driver 0-10V 1% dimming standard. Long-life LED system rated for >100K hours (L70 @ 25°C). Complies with
federal energy efficiency standards.
NATATORIUM OPTION: Includes all the standard options, plus stainless-steel fasteners and a multi-step degrease and phosphate cleaning process
that includes deoxidizing and etching. This is followed by an a super epoxy finish with a very high chemical resistance. This finish is specifically
designed for these environments.
LED: 80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is 100,000 hours at 70% lumen maintenance. LM79, LM80
and TM21 compliant.
LISTINGS: IP65 rated with inset doorframe, IP66 rated with overlap doorframe.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
