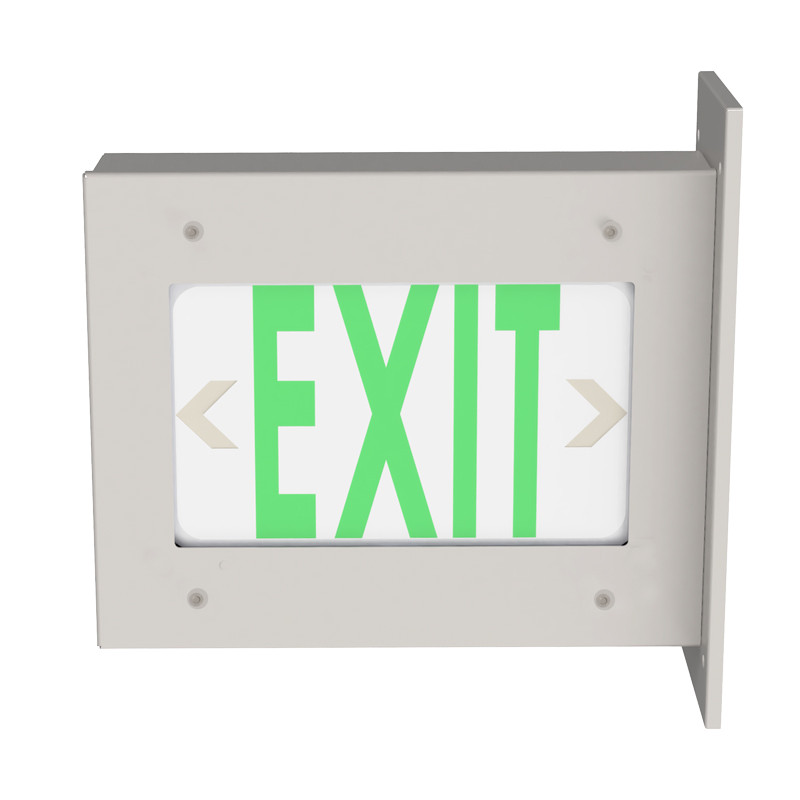

DESCRIPTION
A completely sealed exit sign enclosure developed for applications such as clean rooms, high tech manufacturing facilities, laboratories, hospitals, food processing facilities, and commercial
kitchens.

ELECTRICAL
624 nm Red or 527 nm Green LED light source. Electrical components mounted to removable high impact, injection molded polycarbonate chassis.

LISTINGS
UL and CUL listed for Wet Location. UL Classified IP65 per IEC 60598. Meets or exceeds UL924 and NFPA 101 Standards. Meets or exceeds CSA and NRCAN requirements. Rated for ISO 4/Class 10 clean rooms.

CONSTRUCTION
One-piece construction made from 18-gauge cold roll steel or stainless steel. Doorframe to match housing construction. Corners continuously seam welded and smooth. .125″ clear polycarbonate lens sealed to the doorframe.

FINISH
TGIC white polyester powder coat with a 5-stage pre-treatment. Salt spray test of over 1,000 hours. Reflectance of 92%. See Options for
black exterior or anti-microbial White Paint.

WARRANTY
5 – Year Limited Warranty. Complete warranty and terms located at: www.aelnow.com/warranty
