PRODUCT SPECIFICATIONS

 ILLUMINATION

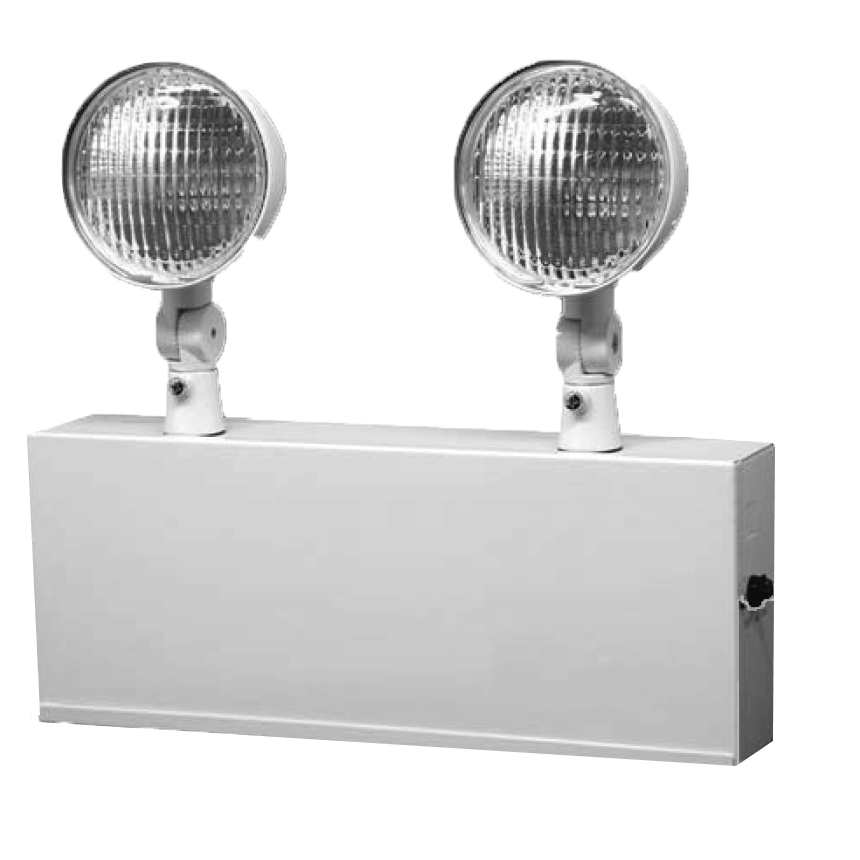

• Two, 6V, 5.3W adjustable white LED lamp heads.

ELECTRICAL

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deep discharge.
• 6V sealed lead acid, maintenance-free, rechargeable battery.
• Internal solid-state transfer switch automatically connects the internal battery to the LED lamp heads for minimum 120-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Remote capacity of 10W standard on 20W models.

MOUNTING

• Knockouts on the back for wall mount.
• Side and top knockouts for conduit feed applications.

HOUSING

• Durable 20-gauge steel construction.
• White or black finish.

WARRANTY/LISTING

• Five year warranty on all electronics and housing. Battery pro rated for two years.
• UL Listed for damp locations (20°C – 50°C).
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• Meets City of Chicago requirements.
