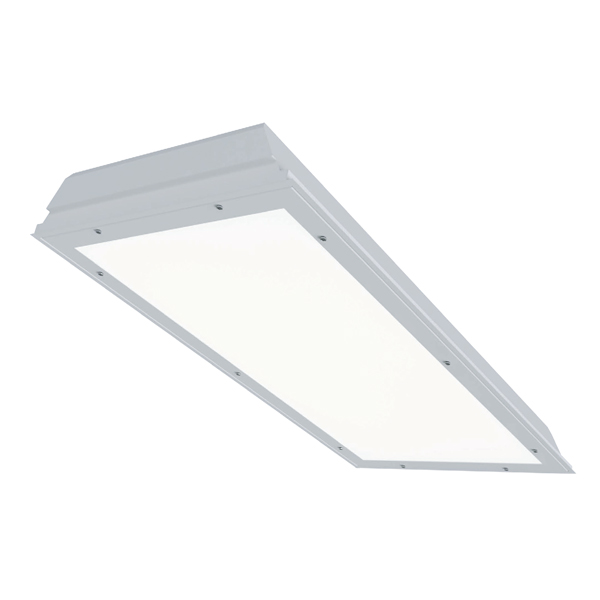

The BVR is an vandal-resistant luminaire which provides a cost-effective LED lighting solution. The BVR is available in 1X4, 2×2 and 2×4 sizes. Also has available options such 90 CRI and a 14W emergency driver. IK10 rating is achieved by utilizing a housing of 20 gauge steel, an 18 gauge door, plus standard tamper-proof fasteners with a polycarbonate lens. All of these features allow this fixture to survive in the most challenging of environments.
HOUSING: Standard with 20 gauge cold roll steel. White TGIC polyester powder coat standard. If options needed are not listed, consult factory.
DOORFRAME: Standard with 18 gauge cold roll steel. White TGIC polyester powder coat standard, with optional anti-microbial white paint. T25 tamper resistant Torx fasteners are standard.
MOUNTING: Recessed grid or flange mounting, and a vandal-resistant surface mounting kit is also available.
LED: 80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is 100,000 hours at 70% lumen maintenance.
OPTICAL SYSTEM: A variety of lensing options are available to fit the needs of any application. If additional lensing options are needed, consult factory.
ELECTRICAL SYSTEM: Electronic driver 0-10V 1% dimming standard. Long-life LED system rated for >100K hours (L70 @ 25°C). Complies with federal energy efficiency standards.
LISTINGS: ETL and cETL approved. NSF compliant. BAA and BABA compliant.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
