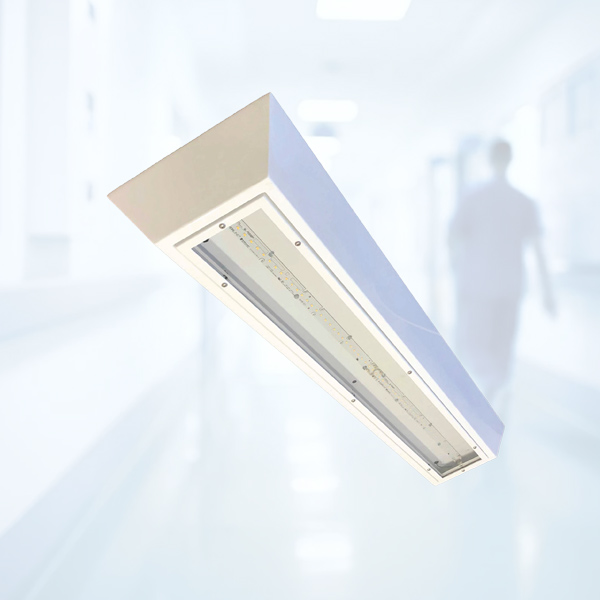

The BHR was designed to be a vandal resistant surface mount luminaire, with prison grade durability. Engineered with a one-piece design, the BHR brings an additional level of security to prison grade fixtures with it’s angled sides.

DOORFRAME: 16-gauge CRS, one-piece inset construction corners. Comes standard with a white TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test of 1,000 hours. Doorframe secured to housing with captive flush mounted vandal resistant stainless steel fasteners (standard).

ELECTRICAL SYSTEM: Electronic driver 0-10V 1% dimming standard. Long-life LED system rated for >100K hours (L70 @ 50°C). Complies with federal energy efficiency standards.

OPTICAL SYSTEM: Lens per specification (see options) and secured with heavy duty lens retention system.

LISTINGS: Designed for damp location. Wet location option available. ETL listed.

MOUNTING: Surface mount installation.

HOUSING: Die formed one-piece frame with tightly closed corners. (material and gauge to match housing).

LED: 80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is >100,000 hours at 70% lumen maintenance.

DOORFRAME GASKET: Neoprene gasket completely seals the fixture.

WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at: www.aelnow.com/warranty
