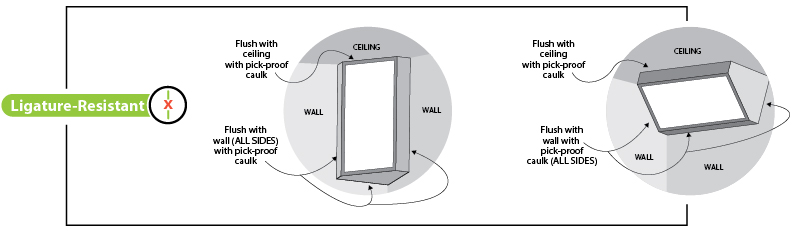

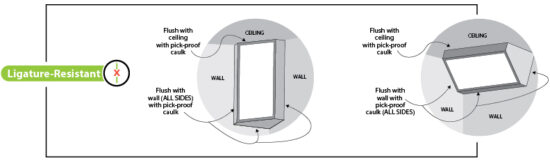

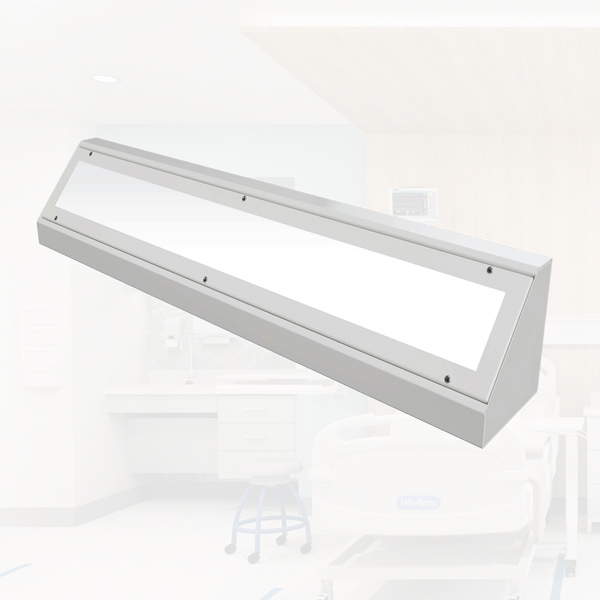

The BHL Series is an architecturally designed surface mount LED fixture. It is available for continuous run mounting. The BHL utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry. The BHL is impact resistant and prevents unwanted fixture penetration. Suited for schools, behavioral health facilities, stairwells, corridors, detention centers, and public transportation areas. Ligature-resistant when mounted with top of fixture and at least 3 sides flush with ceiling/walls, and the addition of pick-proof sealant caulk is used on all edges (see next page for illustrated example).

CONSTRUCTION: One-piece die-formed prime grade material as specified. Corners continuously seam welded and smooth. Knockouts can be ordered through ordering options. Tether for LED tray also available as an option.

FASTENERS: Stainless steel tamper resistant T25 torx head screws.

OPTICAL SYSTEM: The fixture is provided with a precision formed, high efficiency symmetrical reflector to provide exceptional downward throw. Choice of inner diffusing lens material, and outer polycarbonate lens material. If additional lenses are required, consult factory.

ELECTRICAL SYSTEM: Electronic drivers are available for 120/277V applications, 0-10v dimming standard. Long-life LED system rated for >100K life hours (L70 @ 45°C). Complies with federal energy efficiency standards. 90 CRI available as an option.

MOUNTING: This fixture is designed for corner / wall / ceiling mounting, where the wall and ceiling meet.

LISTINGS: Independently tested to IESNA LM-79 and LM-80 specifications. ETL and cETL Listed. Damp location rated. IP65 rated with option WL. Manufactured in the USA, BAA compliant.

WARRANTY: 5 – Year Limited Warranty. Complete warranty and terms located at: www.aelnow.com/warranty
