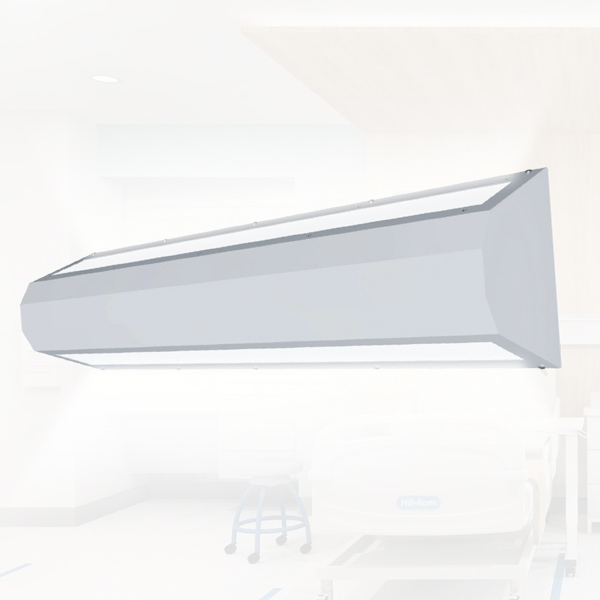

The BHH LED combines maximum security construction with energy saving technology. The BHH utilizes one piece clamshell housing as well as security lensing and tamper resistant fasteners for impact resistance and prevent contraband concealment and unwanted fixture penetration. The BHH is ideal for behavioral health applications. Suitable for use in confinement areas, behavioral health, secure corridors and general areas. Ligature Resistant design. Available in continuous runs.

HOUSING: Various housing material options, consult factory if additional options not listed are needed. Clamshell design with continuous welded and ground ends to form a one-piece, seamless, doorless housing which maximizes impact resistance and prevents contraband concealment, as well as unauthorized fixture penetration. Ligature Resistant design. Stainless-steel aircraft cables attach housing to back plate. Piano hinge is optional.

BACKPLATE: Die-formed 14 ga. steel backplate forms an irretrievable blade trap to prevent contraband concealment.

FASTENERS: Stainless steel tamper-resistant T25 TORX screws standard. Allenhead screws with center reject pin optional.

FINISH: High gloss, electrostatically applied, white powder coat finish, average minimum reflectance 92%. Anti-microbial paint optional.

ELECTRICAL SYSTEM: 0-10V 1% dimming driver included standard. Long-life LED system rated for >100K life hours (L70 @ 25°C). Complies with federal energy efficiency standards.

OPTICAL SYSTEM: Various choices of inner and outer lenses. If additional lens options are required, consult factory.

LED: 80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is >100,000 hours at 70% lumen maintenance.
