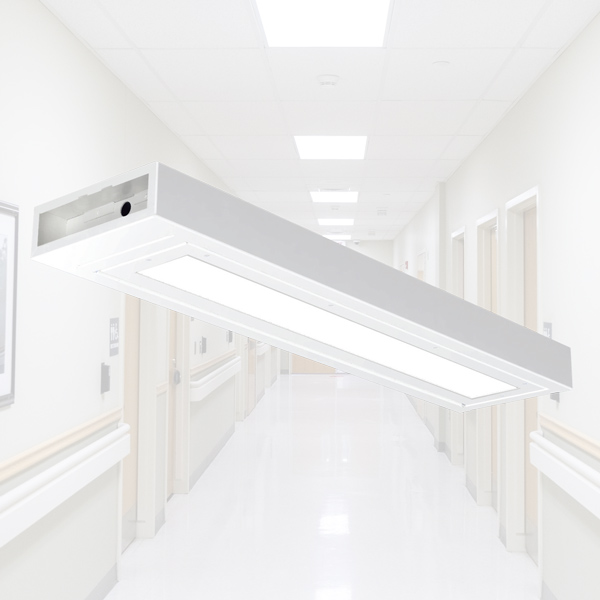

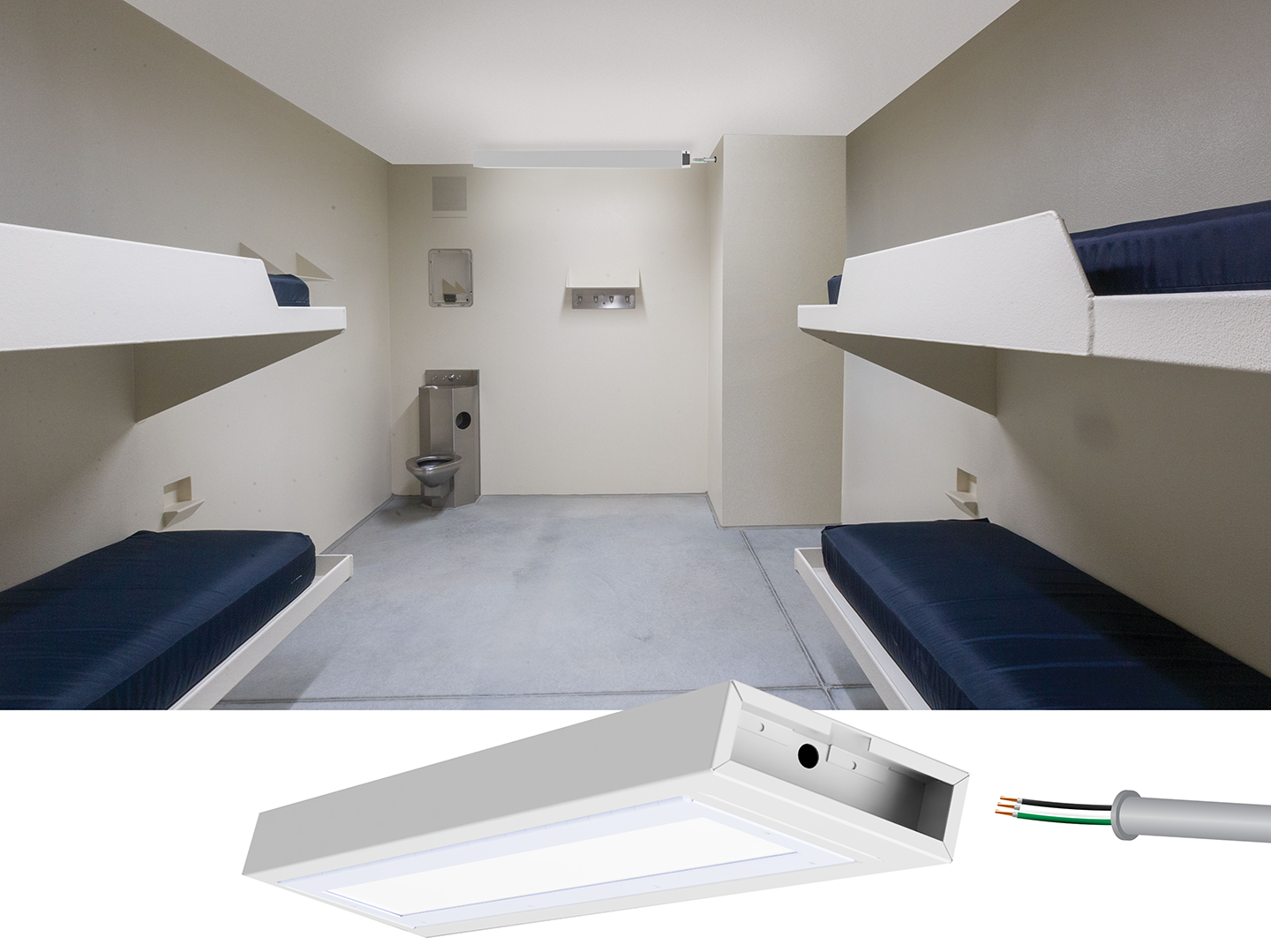

The BHFE combines maximum security construction features with energy saving technology. ETL listed for damp locations; optional wet location under covered ceiling. This surface mounted luminaire utilizes a one-piece housing, security lensing, removable gear tray, and tamper resistant fasteners to maximize impact resistance and prevent contraband concealment and unauthorized fixture penetration. Die-formed body is available in various material options with an Ligature Resistant design. with extended mounted extension ring continuously seamed welded to the body and ground to form a one piece seamless housing. The BHFE is ideal for confinement/security applications. Suitable for use in behavioral health facilities, secure corridors and general areas.
ELECTRICAL SYSTEM: Electronic driver 0-10V 1% dimming standard. Long-life LED system rated for >100K hours (L70 @ 25°C). Complies with federal energy efficiency standards.
OPTICAL SYSTEM: Choice of prismatic acrylic, prismatic polycarbonate or prismatic tempered glass on fixture side, clear polycarbonate or clear tempered glass on environmental side. Lens secured by thru-studs and vertically adjustable internal CRS hold-downs.
LISTINGS: ETL listed for damp locations. IP65 certified for wet location applications.
FINISH: High gloss, electrostatically applied, white powder coat finish, average minimum reflectance 92%
HOUSING: It has a die-formed body in various material options available, Ligature Resistant with an extended mounted extension ring design continuously welded in the body and ground ends to form a one piece, seamless housing for maximum impact resistance and prevention of unauthorized fixture penetration.
LED: 80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. LED Life is >100,000 hours at 70% lumen maintenance.
DOOR: Doors to a one-piece door frame with die-formed edges and tightly closed to increase rigidity. T20 TORX screws are standard. Allen-head screws with center reject pin are optional. Door is attached to the housing with a heavy duty stainless steel piano hinge with a concealed pin to prevent tampering.
DOORFRAME GASKET: One-piece closed cell silicone gasket seals doorframe to housing.
