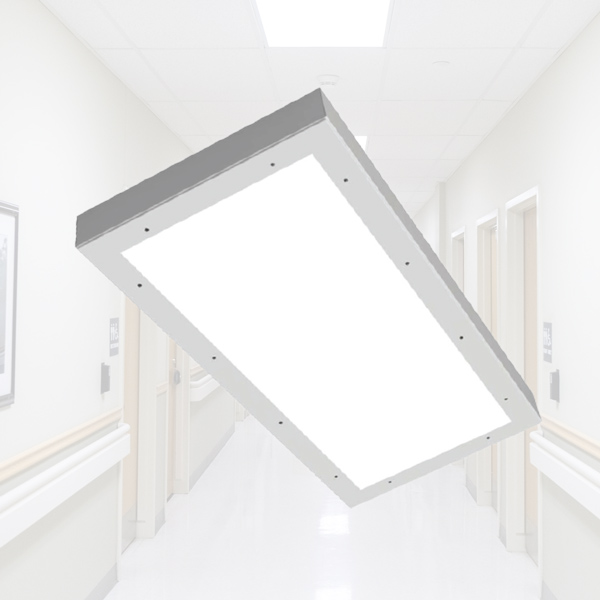

The BHFC combines maximum security construction and modern, energy saving technology. ETL listed for damp locations; optional wet location under covered ceiling. This surface mounted luminaire utilizes a one-piece housing, security lensing and tamper-resistant fasteners to maximize impact resistance and prevent contraband concealment and unauthorized fixture penetration. The BHFC is ideal for confinement/security applications. Suitable for use in behavioral health settings, secure corridors and general

areas.

FASTENERS: Stainless steel tamper-resistant T20 TORX screws with center pin are standard. Allen-head screws with center reject pin are

optional. Both are available in white as an option.

ELECTRICAL SYSTEM: Electronic driver 0-10V 1% dimming standard. Long-life LED system rated for >100K hours (L70 @ 25°C). Complies

with federal energy efficiency standards.

OPTICAL SYSTEM: Choice of prismatic acrylic, prismatic polycarbonate or prismatic tempered glass on fixture side, clear polycarbonate or

clear tempered glass on environmental side. Lens secured by thru-studs and vertically adjustable internal CRS holddowns.

LISTINGS: ETL listed for damp locations. Wet location option available.

FINISH: High gloss, electrostatically applied, white powder coat finish, average minimum reflectance 92%

HOUSING: Die-formed body in various material options with continuous welded and ground ends to form a one piece, seamless housing

for maximum impact resistance and prevention of unauthorized fixture penetration.

LED: 80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. LED Life is >100,000 hours at 70% lumen maintenance.

DOOR: One-piece door frame with die-formed edges and tightly closed corners increases rigidity. Door gauge to match housing. Door is

attached to the housing with stainless steel aircraft cables. Piano Hinge option available.

DOORFRAME GASKET: One-piece closed cell silicone gasket seals doorframe to housing for wet location option.

WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at: www.aelnow.com/warranty
