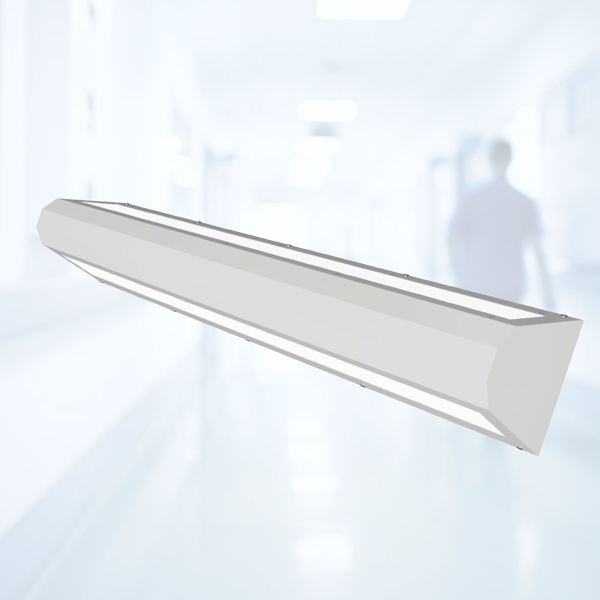

The BHEL LED wall mount is a durable direct/indirect behavioral healthcare fixture. The BHEL utilizes one piece clamshell housing with various inner and outer lens options to provide for a stylish and efficient fixture, while providing tamper and impact resistance. Utilizing the latest in LED technology, the BHEL was engineered to be a durable, long lasting, high efficiency fixture. Ideal for use in any behavioral healthcare facility area.

ELECTRICAL SYSTEM: 0-10V 1% Dimming Drivers included standard. Long-life LED system rated for >100K life hours (L70 @ 25°C). Complies with federal energy efficiency standards.

OPTICAL SYSTEM: Various choices of inner and outer lenses. If additional lens options are required, consult factory. A .125 Clear Polycarbonate lens is standard.

LISTINGS: Designed for damp locations. Wet location optional. ETL listed.

FINISH: High gloss, electrostatically applied, white powder coat finish, average minimum reflectance 92%. Anti-microbial paint optional.

HOUSING: Clamshell design combines die-formed 18 gauge steel body with continuous welded and ground ends to form a one-piece, seamless, doorless housing. This housing is designed to be durable and long-lasting to meet the needs of healthcare lighting. Ligature resistant design with sloped edges. Tamper-proof fasteners. Aluminum housing is also available.

LED: 80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is >100,000 hours at 70% lumen maintenance.

BACKPLATE: Die-formed heavy gauge steel backplate.

WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty

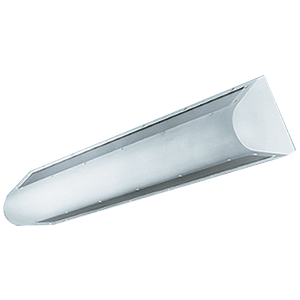

Cross fixture: https://aelnow.com/cutsheets/MEL
