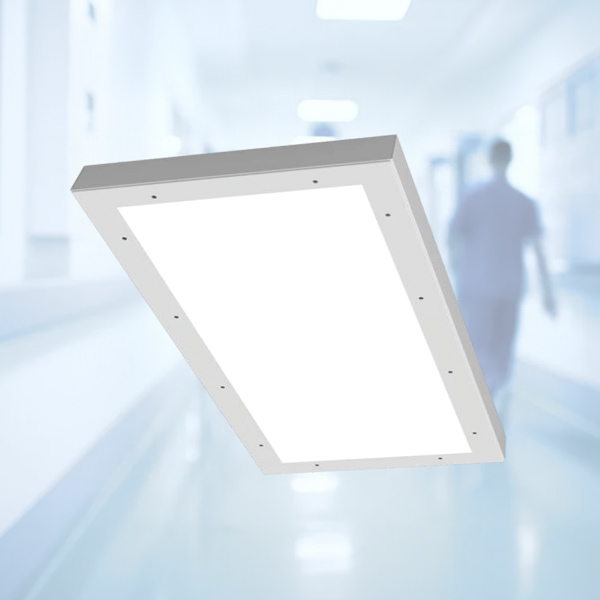

The BHEI provides a supplemental, asymmetric/symmetric surface mount lighting solution in the operating room. The BHEI is available in 1×4, 2×2, and 2×4 sizes, and it is typically positioned around the perimeter of the operating room. Available in 1×4, 2×2, and 2×4 sizes. Typically positioned around the perimeter of the operating room. Available with choice of housing and doorframe materials, anti-microbial paint, and a MIL STD 461G compliant option, the BHEI is the perfect choice in the operating room surgical suite.
DOORFRAME: Choice of inset or overlapping door frame. Various door frame materials are available, if additional options are needed, consult factory. White TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Doorframe secured to housing with stainless steel aircraft cables and captive flush mounted Phillips head stainless steel fasteners.
ELECTRICAL SYSTEM: Electronic driver 0-10V 1% dimming included standard. Long-life LED system rated for >100K hours (L70 @ 25°C). Complies with federal energy efficiency standards.
OPTICAL SYSTEM: High transmission diffused DR acrylic lens. Internal reflector optics with choice of full symmetric, asymmetric/symmetric, or full asymmetric maintain a uniform appearance while being engineered specifically for surgical suite applications. RF grid lens included when MIL STD 461G Compliance option is ordered.
LISTINGS: ETL Listed. NSF compliant design (Non-Food, Splash Zone). IP65 rated. MIL option complies with MIL-STD-461G conducted emissions regulation and includes a radio suppression grid lens. Suitable for FED-STD-209E/Class 1 (ISO 3) cleanrooms.
MOUNTING: Surface Mount. HOUSING: Choice of heavy gauge cold roll steel, stainless steel, or aluminum (choice of 304 or 316). Seam-welded construction. All doors attached to the housing with two stainless steel aircraft cables. Stainless steel Philips head screws secure door frame to housing. White TGIC polyester powder coat with a 5-stage pre-treatment. Salt spray test >1,000 hours. Reflectance of 92%. Antimicrobial finish optional. LED: 80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is >100,000 hours at 70% lumen maintenance.
DOORFRAME GASKET: One-piece closed cell silicone gasket seals doorframe to housing.
WARRANTY: 5 Year Limited Warranty on housing and electronics. Complete warranty and terms located at: www.aelnow.com/warranty.
