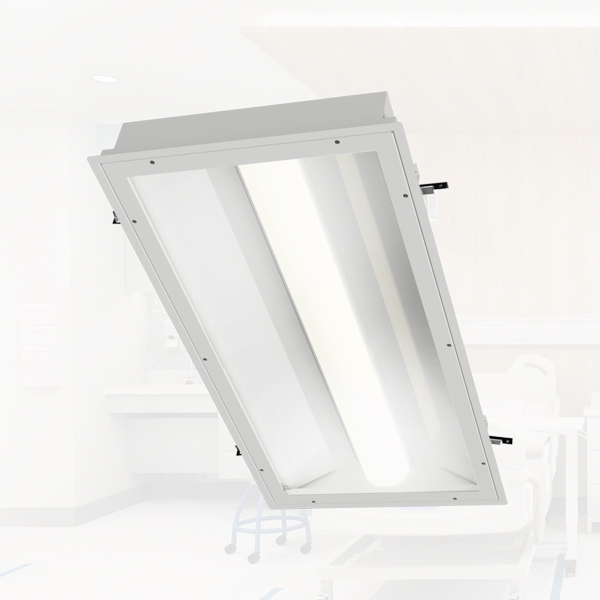

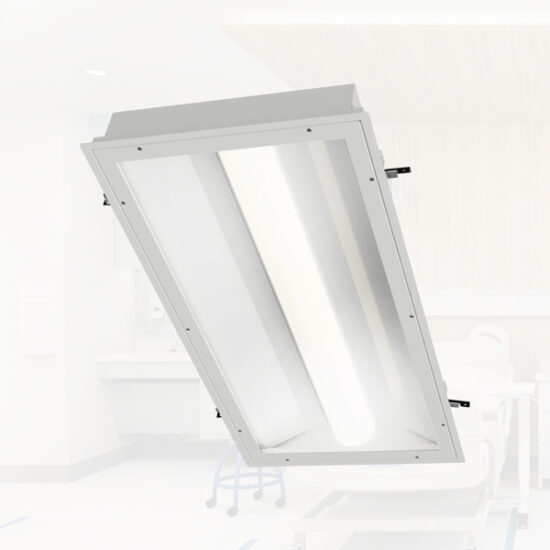

The BHED features innovative optical technology which provides powerful, focused illumination for examinations. Its exemplary design directs the light onto the bed and provides glare-free illumination for both the medical professional and patient. This ergonomically styled design helps bring a relaxed, comfortable feel to any patient room.

ELECTRICAL SYSTEM: Electronic driver 0-10V 1% dimming included standard. Long-life LED system rated for >100K hours (L70 @ 25°C). Complies with federal energy efficiency standards.

OPTICAL SYSTEM: High efficiency extruded frosted acrylic inner diffuser. Choice of clear polycarbonate lenses.

CONSTRUCTION: Housing construction per specification, available in 20 or 18 gauge cold roll steel, stainless steel, or .063” aluminum construction. Inset doorframe available in 18 gauge cold roll steel, stainless steel, or .063” aluminum. Electrostatically applied powder coat matte white finish standard, brushed finish optional. Anti-microbial white finish available with option AM. Stainless steel philips fasteners are standard, with T25 Torx as an option.

MOUNTING: Recessed grid and recessed flanged applications. Easy installation with adjustable 90° swing arm system standard. Universal mounting allows for both recessed flanged and recessed grid mounting.

LED: LEDs available in 2700K, 3000K, 4000K and 5000K with CRI > 82. Projected life is >100,000 hours at 70% lumen maintenance. 90 CRI available.

DOORFRAME GASKET: Neoprene gasket seals door frame to housing (optional with wet location option).

LISTINGS: ETL/cETL listed. IP65 Rated. Manufactured in the USA, BAA compliant.

WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty
