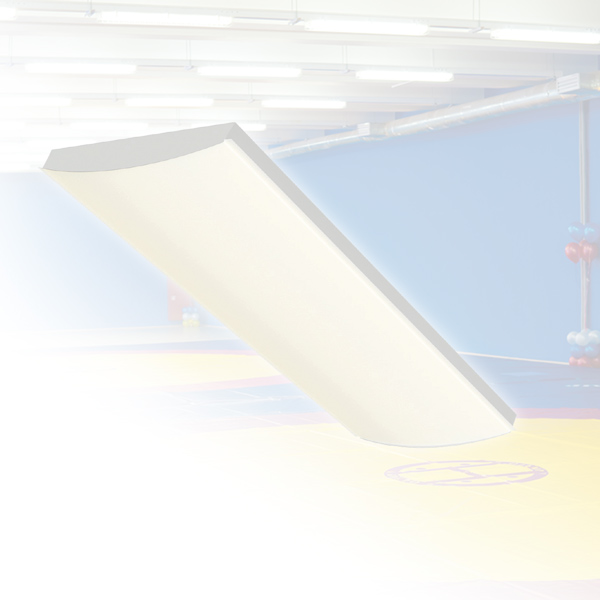

The BHAO is a streamlined high abuse fixture with smooth edges and countersunk fasteners. Steel end caps and steel body provides strength while an extruded linear ribbed polycarbonate lens obscures the LED image and spreads light evenly. Sloped edge design for Ligature Resistant applications. The BHAO is ideal for areas where the need for aesthetics and protection from vandalism are critical. Suited for areas such as: schools, behavioral health facilities, stairwells, corridors, detention centers, and public transportation areas. All BHAO’s are 12” wide.

CONSTRUCTION: Heavy duty, 18 ga. steel housing and end caps provide rigid construction. Stainless-steel and .063″ aluminum available. See options for 7/8” knockouts in end caps for continuous row mounting.

FASTENERS: Tamper-proof Torx head with center-pin fasteners included standard. Allenhead with center-pin fasteners optional.

OPTICAL SYSTEM: One-piece extruded UV stabilized opal polycarbonate standard. Ribbed design provides even light distribution while obscuring lamp image and direct glare. Nominal lens thickness = 0.135”.

ELECTRICAL SYSTEM: Electronic drivers are available for 120/277V applications, 0-10v dimming standard. Long-life LED system rated for >100K life hours (L70 @ 45°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. Consult factory for special tuning to achieve specific lumen outputs.

MOUNTING: This fixture is designed for wall or ceiling mounting.

LISTINGS: ETL and cETL Listed. Damp location rated. Manufactured in the USA, BAA compliant.

WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty
